5406514-1

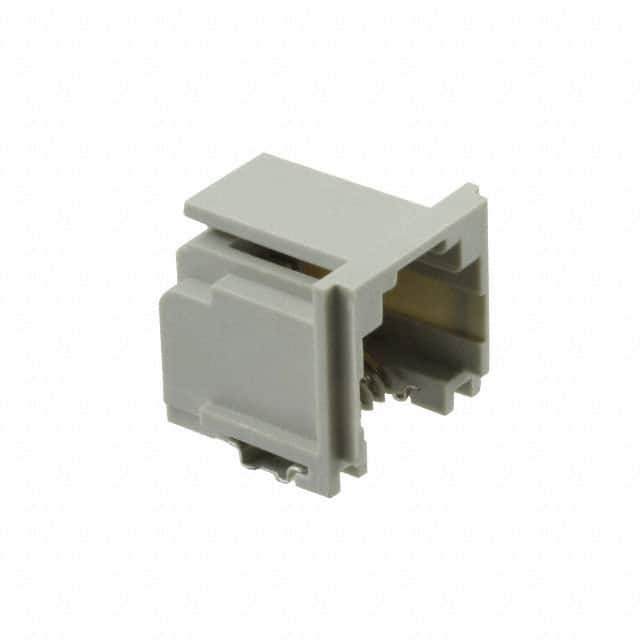

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Ports 1
Number of Rows 1
Mounting Type Surface Mount
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5406514
Standard Package 600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856506-5406514-1
Ultra Librarian 3D Model Ultra Librarian 5406514-1 CAD Model

Description

The TE Connectivity 856506-5406514-1 is a modular connector jack with board lock feature. It is designed for surface mount mounting type and has a 90° angle (right) orientation.

  • Feature: board lock
  • Mounting Type: surface mount
  • Orientation: 90° angle (right)
  • Connector Type: jack
  • Rows: one
  • Positions/Contacts: 6 positions/contacts (6p6c)
  • Contact Finish: gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Housing Material: thermoplastic
  • Contact Material: copper alloy
  • Shielding: unshielded
  • Standard Package: 600 pieces
  • Category: Cat3
  • LED: No
  • Tab Direction: down
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Status: active
  • Category: connectors, interconnects - modular connectors - modular connector jacks
