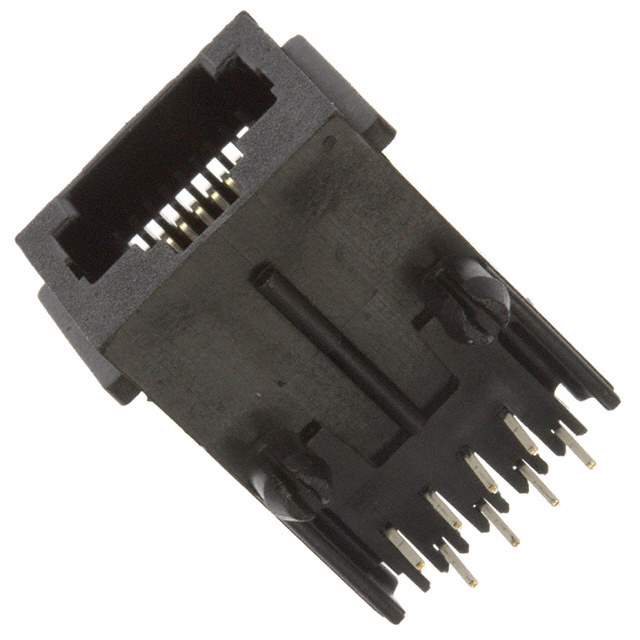

Same model may have multiple batches, images only for reference.

5520251-4

Name: 5520251-4
Brand: TE Connectivity
SKU: 1226078
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5520251-4
Manufacturer	TE Connectivity
Catalog	Modular Connectors
Description	CONN MOD JACK 8P8C R/A UNSHLD / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat3
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks
Mfr	TE Connectivity AMP Connectors
Package	Tray
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Rows	1
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Shielding	Unshielded
Ratings	Cat3
Features	Board Lock, Panel Stops
LED Color	Does Not Contain LED
Tab Direction	Down
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Housing Material	Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating	-40°C ~ 85°C
Base Product Number	5520251
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	-CC3737-000-SI,2266-5520251-4,55202514,-5520251-4-SI,-CC3737-000-SI-ND,A31407
Standard Package	136
Win Source Part Number	1226078-5520251-4
Ultra Librarian 3D Model	Ultra Librarian 5520251-4 CAD Model

Alternative Products

Description

This TE Connectivity AMP Connectors Jack is a high-quality connector that is perfect for use in modular connectors.

Features: Board Lock and Panel Stops
Connector Type: Jack
Rows: One
Termination: Solder
Contact Finish: Gold
Contact Finish Thickness: 50.0µin (1.27µm)
Contact Material: Phosphor Bronze
Housing Material: Polybutylene Terephthalate (PBT) and Polyester
Orientation: 90° Angle (Right)
Ports: One
Rating: Cat3
Suitable for: Ethernet applications
LED Color: Not Available
Tab Direction: Down
Positions/Contacts: 8p8c (RJ45, Ethernet)
Mounting: Through Hole
Operating Temperature: -40°C to 85°C
