Products specifications

Category Integrated Circuits (ICs)>Memory
Mfr Macronix
Series MXSMIO™
Package Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface SPI - Quad I/O
Clock Frequency 80 MHz
Write Cycle Time - Word, Page 100µs, 4ms
Voltage - Supply 2.3V ~ 3.6V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-WSON (6x5)
Base Product Number MX25V1635
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1
HTSUS 8542.32.0071
Other Names 1092-MX25V1635FZNQ03
Standard Package 570
Win Source Part Number 1130993-MX25V1635FZNQ03
Ultra Librarian 3D Model Ultra Librarian MX25V1635FZNQ03 CAD Model

Description

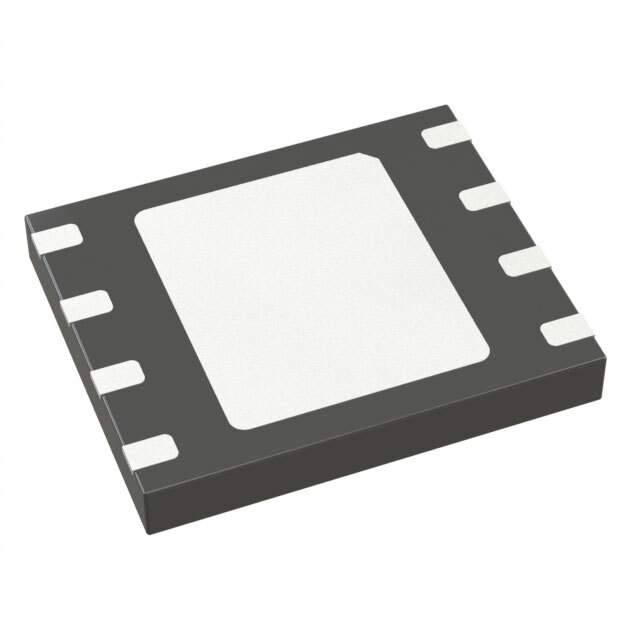

The MX25V1635FZNQ03 from Macronix is a Non-Volatile FLASH - NOR Memory IC with a memory size of 16Mb (2M x 8).

  • Voltage Supply: 2.3V to 3.6V
  • Clock Frequency: 80 MHz
  • Memory Interface: SPI - Quad I/O
  • Memory Format: FLASH
  • Write Cycle Time: 100µs for word and 4ms for page
  • Temperature Range: -40°C to 125°C
  • Package: 8-WDFN Exposed Pad
  • Supplier Device Package: 8-WSON (6x5)

This IC is suitable for use in integrated circuits (ICs) and memory applications. It is part of the MXSMIO™ series.
