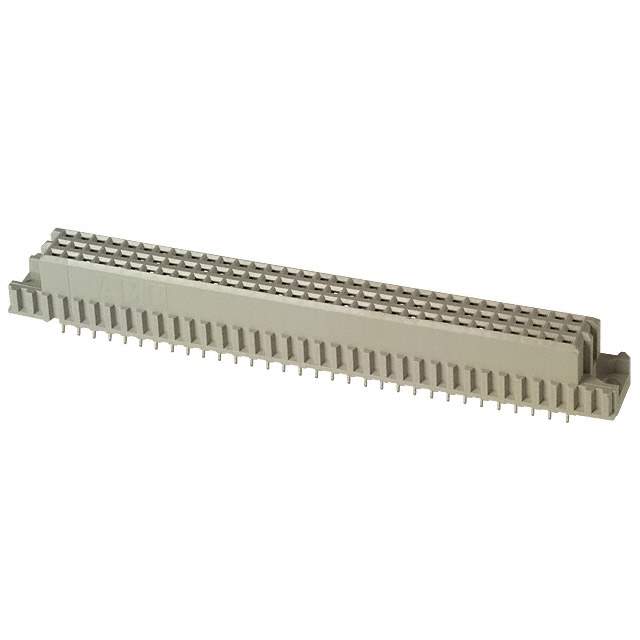

535090-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polyester, Glass Filled
Base Product Number 535090
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A1285,5350905
Standard Package 30
Win Source Part Number 1032669-535090-5
Ultra Librarian 3D Model Ultra Librarian 535090-5 CAD Model

Description

The 535090-5 is a through-hole DIN 41612 Eurocard connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 96
  • Insulation Material: polyester and glass-filled
  • Pitch: 0.100" (2.54mm)
  • Type: receptacle with female sockets
