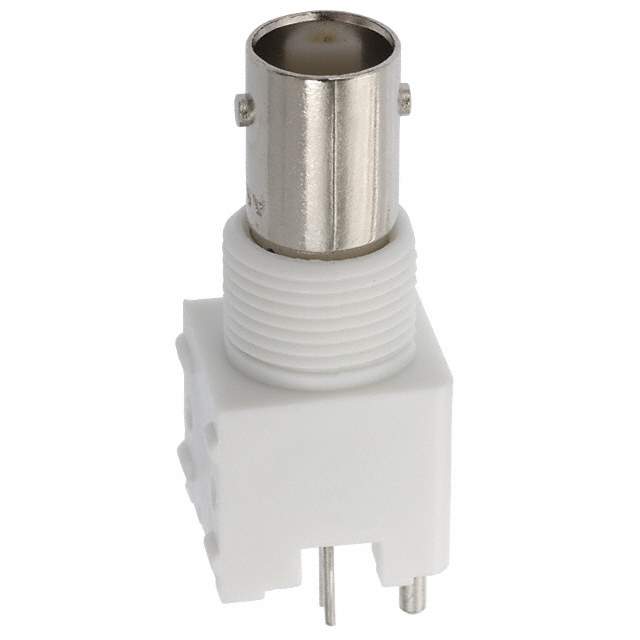

Same model may have multiple batches, images only for reference.

5227222-3

Name: 5227222-3
Brand: TE Connectivity
SKU: 907230
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5227222-3
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN BNC JACK STR 50 OHM PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	16 Weeks
Features	BNC Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole Solder
Manufacturer	TE Connectivity
Package	Bulk
Operating Temperature Range	-55°C ~ 85°C
Mounting	Panel Mount, Through Hole
Family Name	5227222
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Part Number	52272223, -5227222-3-SI, A32262
Quantity per package	35
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	907230-5227222-3
Ultra Librarian 3D Model	Ultra Librarian 5227222-3 CAD Model

Alternative Products

Description

The TE Connectivity BNC connector jack is a great choice for your electronic projects.

Connector Type: BNC Connector Jack
Gender: Female Socket
Mounting: Through Hole, Panel Mount
Operating Temperature: -55°C to 85°C
Packaging: Bulk
