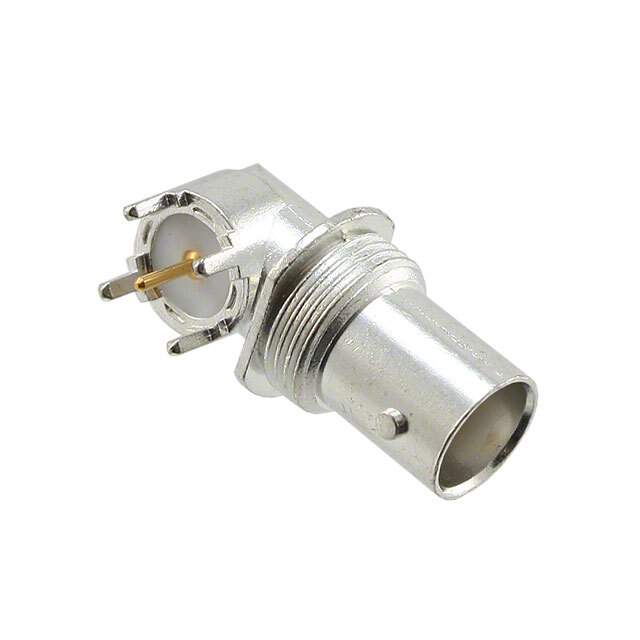

5415025-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 15 Weeks
Features BNC Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole, Right Angle Solder
Manufacturer TE Connectivity
Package Tray
Operating Temperature Range -55°C ~ 85°C
Mounting Panel Mount, Through Hole, Right Angle
Family Name 5415025
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 54150252, -5415025-2-SI, 2266-5415025-2, 5415025-2-ND, A102049
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907351-5415025-2
Ultra Librarian 3D Model Ultra Librarian 5415025-2 CAD Model

Description

The TE Connectivity 907351-5415025-2 is a BNC connector jack with a female socket and a 50Ohm panel mount.

  • Socket: Female
  • Impedance: 50Ohm
  • Mounting Style: Through-Hole, Right-Angle Solder
  • Operating Temperature: -55°C to 85°C
  • Package: Tray
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand: Balanced
  • Package Quantity: 50
  • MSL Level: 1 (Unlimited)
  • Lead Time: 15 weeks
  • REACH Status: REACH affected
  • HTSUS: 8536.69.4010
