Same model may have multiple batches, images only for reference.

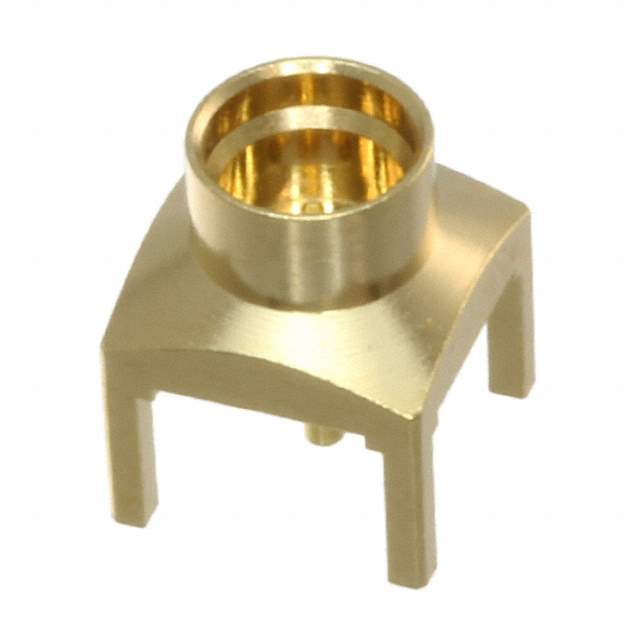

SMP-PF-P-GF-ST-TH2 Real Image
Same model may have multiple batches, images only for reference.

SMP-PF-P-GF-ST-TH2

Part No SMP-PF-P-GF-ST-TH2
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Samtec Inc.
Package Tray
Connector Style SMP
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Number of Ports 1
Features Full Detent
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Base Product Number SMP-PF
Other Names SAM9961
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1294133-SMP-PF-P-GF-ST-TH2
Ultra Librarian 3D Model Ultra Librarian SMP-PF-P-GF-ST-TH2 CAD Model

Description

The Samtec Inc. SMP-PF-P-GF-ST-TH2 is a coaxial connector with a snap-on fastening type.

  • Connector Type: Coaxial
  • Fastening Type: Snap-on
  • Type: Plug, male pin
  • Feature: Full detent
  • Voltage Rating: 335 V
  • Impedance: 50Ohm
  • Mounting: Through hole
  • Temperature Range: -65°C to 165°C
  • REACH Status: Affected
