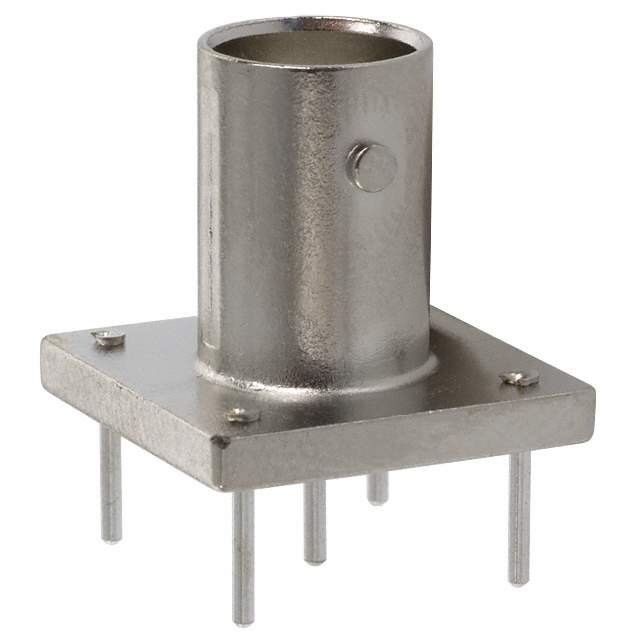

5227699-3 Real Image
Same model may have multiple batches, images only for reference.

5227699-3

Part No 5227699-3
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK STR 50 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features BNC Connector Jack, Female Socket 50Ohm Through Hole Solder
Manufacturer TE Connectivity
Package Tube
Operating Temperature Range -55°C ~ 85°C
Mounting Through Hole
Family Name 5227699
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number A32249, 52276993, 2266-5227699-3
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907231-5227699-3
Ultra Librarian 3D Model Ultra Librarian 5227699-3 CAD Model

Description

The 5227699-3 is a BNC connector jack from TE Connectivity.

  • Connector Type: BNC Connector Jack
  • Gender: Female Socket
  • Impedance: 50Ohm
  • Mounting: Through Hole, Solder
  • Packaging: Tube
  • Popularity: 62 pct
  • Quantity per Package: 30
  • Estimated Production Lead Time: 13 weeks
  • MSL Level: 1 (Unlimited)
  • REACH: Affected
  • HTSUS: 8536.69.4010
  • Other Part Numbers: A32249, 52276993, 2266-5227699-3
