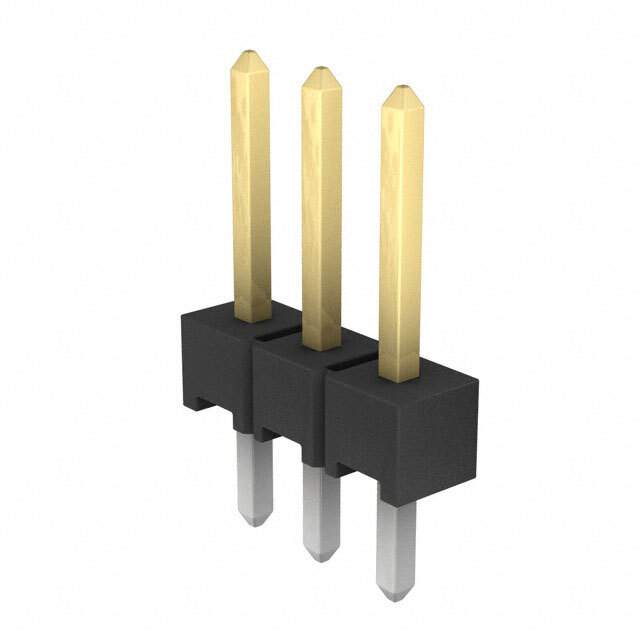

Same model may have multiple batches, images only for reference.

5-146293-3

Name: 5-146293-3
Brand: TE Connectivity
SKU: 809481
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-146293-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.54MM / Breakaway and Retention Headers—Unshrouded
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.440" (11.18mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0μin (2.54μm)
Manufacturer Pack Quantity	540
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809482-5-146293-3
Ultra Librarian 3D Model	Ultra Librarian 5-146293-3 CAD Model

Alternative Products

Description

The 809482-5-146293-3 header connector from TE Connectivity AMP Connectors is an ideal solution for board-to-board or cable applications.

Mounting Style: Through-Hole
Contact Type: Male Pin
Positions Loaded: 3
Contact Material: Copper Alloy
Contact Finish (Mating): Gold (30.0μin (0.76μm))
Contact Finish (Post): Tin (100.0μin (2.54μm))
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Contact Length: 0.440" (11.18mm)
Insulation Height: 0.090" (2.29mm)
Temperature Range: -65°C ~ 105°C
Current Rating: 3A
Packaging: Bulk
Supply and Demand Status: Limited
