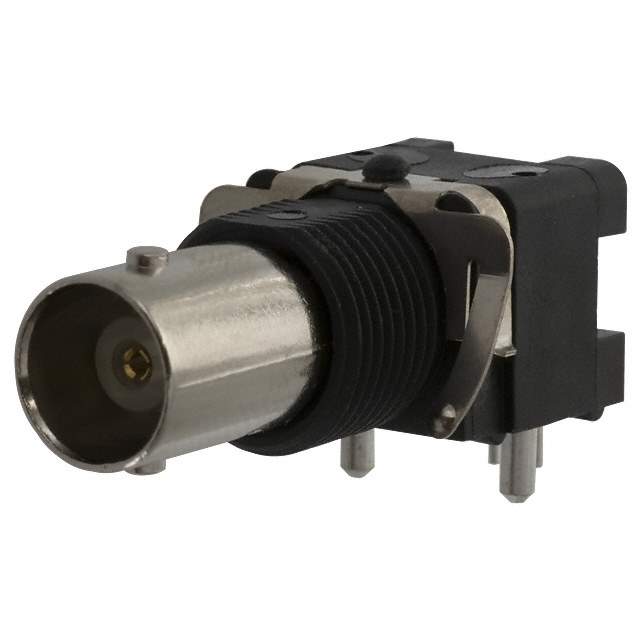

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Features Board Guide, Filter, Isolated
Housing Color Black, Silver
Center Contact Material Phosphor Bronze
Body Material Zinc
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polymethylpentene (PMP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 413515
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 2266-413515-2,413515-2-ND,A24618
Standard Package 868
Win Source Part Number 1331980-413515-2
Ultra Librarian 3D Model Ultra Librarian 413515-2 CAD Model

Description

The 1331980-413515-2 is a BNC coaxial connector assembly designed for use in electronic applications.

  • Packaging: Bulk
  • Standard Package: 868
  • Connector Type: Jack, female socket
  • Fastening Type: Bayonet lock
  • Connector Style: BNC
  • Voltage Rating: 500V
  • Mounting: Panel mount, through hole, right angle mounting
  • Impedance: 50Ohm
  • Mounting Feature: Bulkhead - front side nut
  • Manufacturer: TE Connectivity AMP Connectors
  • Housing Color: Black and silver
  • Temperature Range: -55°C to 85°C
