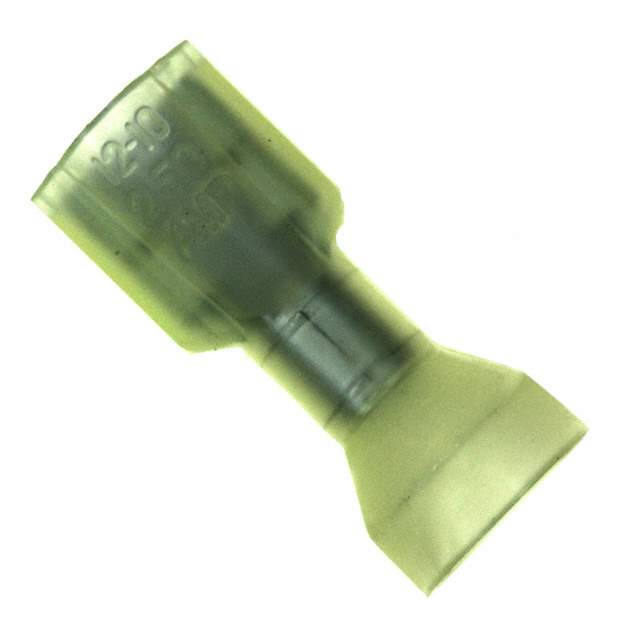

4-520448-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.935" (23.75mm)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Yellow
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.320" (8.13mm)
Base Product Number 520448
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -HUB-FULLINSUL-10-12FM-SI,2266-4-520448-2,-4-520448-2-CSI,A27831,-4-520448-2-SI,-HUB-FULLINSUL-10-12FM-CSI,-HUB-FULLINSUL-10-12FM-CSI-ND,-HUB-FULLINSUL-10-12FM-SI-ND,4-520448-2-ND,45204482
Standard Package 1,000
Win Source Part Number 1333454-4-520448-2
Ultra Librarian 3D Model Ultra Librarian 4-520448-2 CAD Model

Description

The TE Connectivity AMP Connectors 520448 quick connect terminal is designed with a crimp termination and is fully insulated.

  • Termination: Crimp
  • Insulation: Fully Insulated
  • Contact Finish: Tin
  • Wire Gauge: 10-12 AWG
  • Gender: Female
  • Standard Package: 1,000 units
  • Mounting Type: Free Hanging (In-Line)
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
