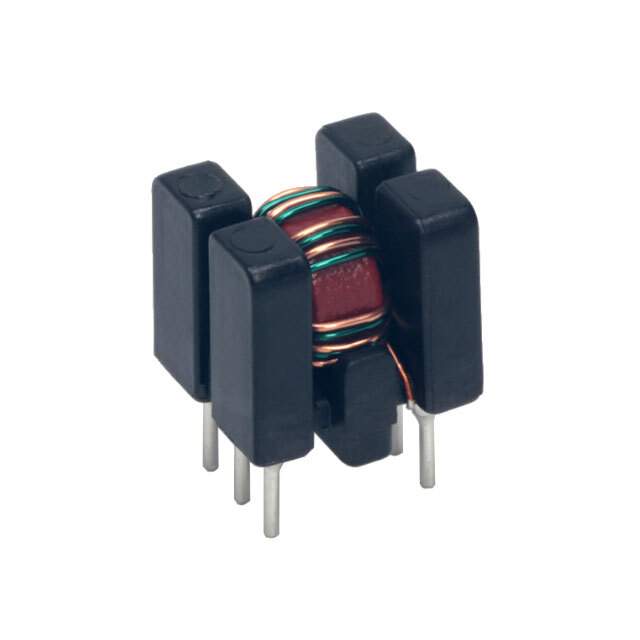

SH-302 Real Image
Same model may have multiple batches, images only for reference.

SH-302

Part No SH-302
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 26mOhm
Voltage Rating - DC 150V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Other Names UDLSH003020000,399-19662
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276860-SH-302
Ultra Librarian 3D Model Ultra Librarian SH-302 CAD Model

Description

The Kemet 1276860-SH-302 is a common mode choke designed for use in power line filters.

  • Manufacturer:Kemet
  • Filter Type: Power Line
  • Lines: 2
  • DC Resistance: 26 mOhm
  • Voltage Rating (DC): 150 V
  • Current Rating: 3 A
  • Package: Vertical, 4 PC pin
  • Height: 0.472 inches (12.00 mm)
  • Mounting Technology: Through-Hole
  • Operating Temperature Range: -25°C to 80°C
  • Popularity Rating: High
  • REACH Regulations: Unaffected
  • ECCN: EAR99
