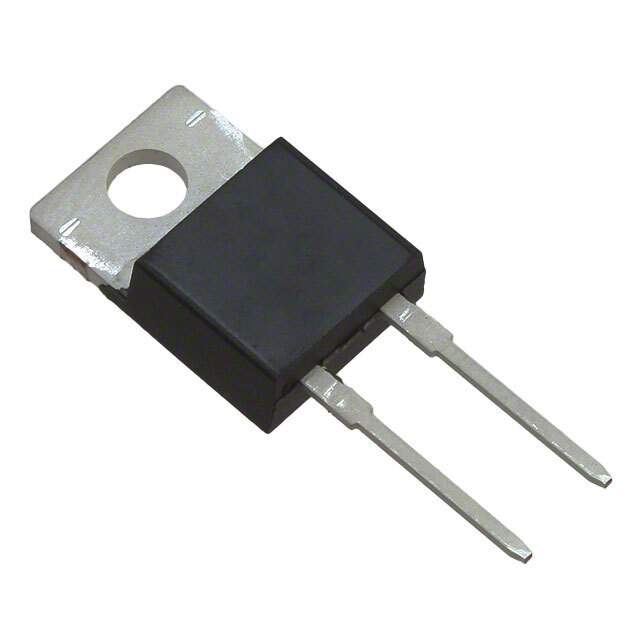

C3D10065A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Cree Inc.
Standard Package 50
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Series Z-Rec
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650V
Current - Average Rectified (Io) 10A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8V @ 10A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 60µA @ 650V
Capacitance @ Vr F 480pF @ 0V 1MHz
Mounting Style Through Hole
Package TO-220-2
Manufacturer Device Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Catalog Silicon Carbide Schottky Diode
Win Source Part Number 049994-C3D10065A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C3D10065A CAD Model

Description

Description

The C3D10065A is a silicon carbide (SiC) Schottky diode designed for high-efficiency power conversion applications. Known for its robustness and high efficiency, this diode delivers enhanced performance in high-frequency operations.

  • Features and Benefits:
    • High Efficiency: Enhanced performance due to low forward voltage drop and temperature-independent switching.
    • Durability: Superior SiC technology ensures reliability and endurance in harsh environments.
    • Fast Recovery Time: Minimizes switching losses and boosts overall efficiency.
  • Applications/Projects:
    • Solar Inverters
    • Switch Mode Power Supplies (SMPS)
    • Uninterruptible Power Supplies (UPS)
    • Motor Drives

This diode is geared for efficiency in systems aiming for minimal energy loss and maximum output.
