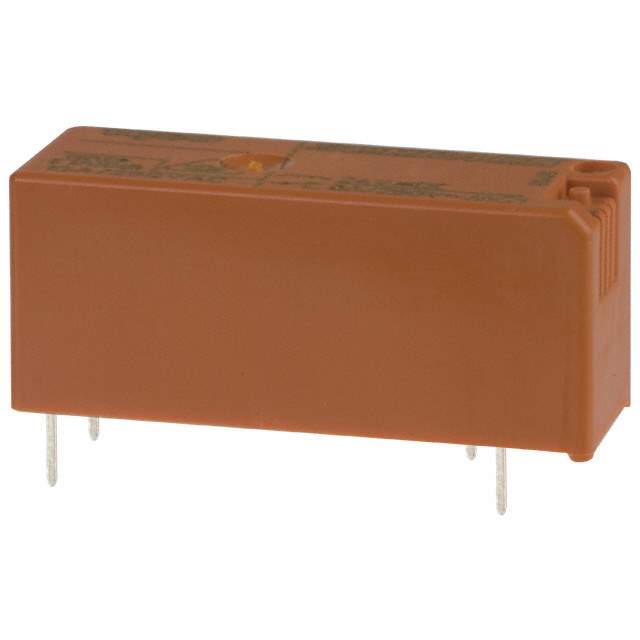

4-1393224-6 Real Image
Same model may have multiple batches, images only for reference.

4-1393224-6

Part No 4-1393224-6
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay SPDT 10(NO)/8(NC)A 12VDC 476Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 70 °C
Coil Current 19.14 mA
Coil Power 230 mW
Coil Resistance 627 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 8 A
Contact Material Silver
Current Rating 8 A
Depth 10.1 mm
ELV Compliant
Height 12.3 mm
Lead Free Yes
Length 28.5 mm
Max Current Rating 8 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 5
Operate Time 9 ms
Packaging Bulk
Power Rating 230 mW
Radiation Hardening No
Ratings IP54
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Schedule B 8536490050
Switching Capacity 2 kW
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (AC) 400 V
Voltage Rating (DC) 12 V
Width 10.1 mm
Win Source Part Number 1038575-4-1393224-6
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1393224-6 CAD Model

Description

This electronic component is a general purpose relay manufactured by TE Connectivity. It has a PC pin termination and silver contact material.

  • Current Rating: 8 A
  • IP Rating: IP54
  • Relay Type: Non-Latching
  • Coil Power: 230 mW
  • RoHS Compliant: Yes
  • Lead-Free: Yes
