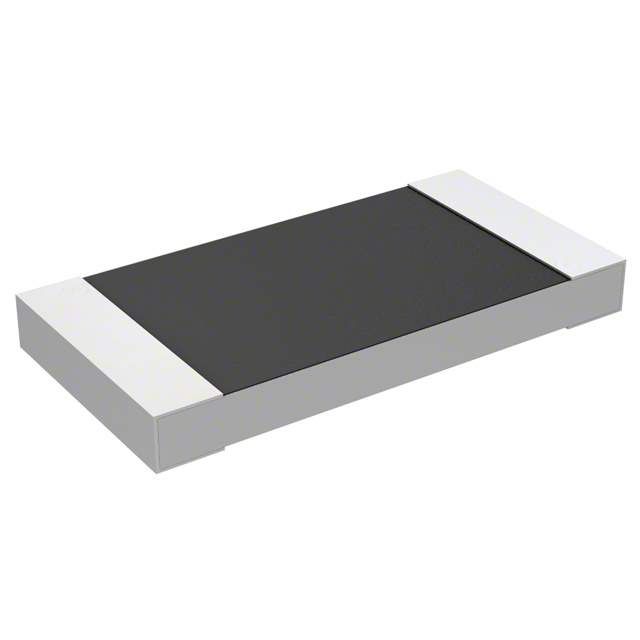

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series 3521, CGS
Package Tape & Reel
Resistance 1.5 kOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Ratings AEC-Q200
Dimension 0.248" L x 0.126" W (6.30mm x 3.20mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number 3521
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A116036TR,A116036CT,A116036DKR,5-2176070-3
Standard Package 4,000
Win Source Part Number 1220328-35211K5FT
Ultra Librarian 3D Model Ultra Librarian 35211K5FT CAD Model

Description

The TE Connectivity Passive Product 3521 CGS is a thick film chip resistor with a resistance of 1.5 kOhms and a tolerance of ±1%.

  • Manufacturer: TE Connectivity Passive Product
  • Resistance: 1.5 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Type: Thick Film Chip Resistor - Surface Mount
  • Power (Watts): 2W
  • Package/Case: 2512 (6432 Metric)
  • Packaging: Tape & Reel
  • Height-Seated (Max): 0.026" (0.65mm)
  • Standard Package: 4,000
  • Rating: AEC-Q200
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.21.0030
