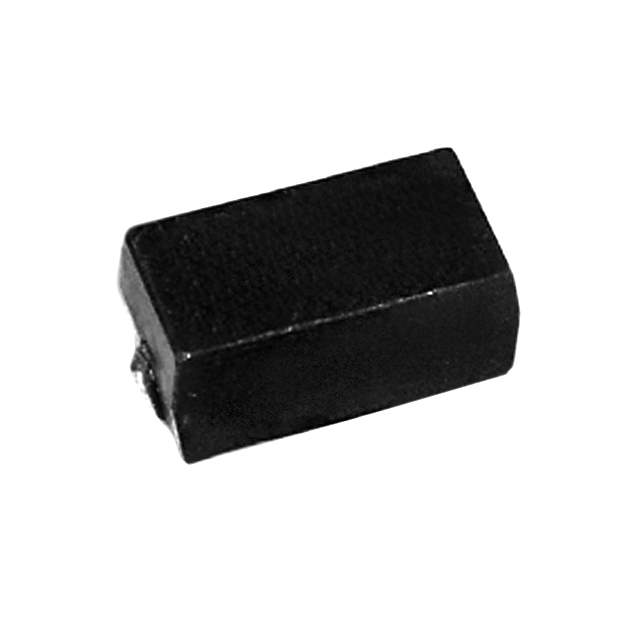

SMW2R27JT Real Image
Same model may have multiple batches, images only for reference.

SMW2R27JT

Part No SMW2R27JT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.27 OHM 5% 2W 2616  /  270 mOhms ±5% 2W Chip Resistor 2616 (6740 Metric), J-Lead Flame Retardant Coating, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMW, CGS
Package Tape & Reel
Resistance 270 mOhms
Tolerance ±5%
Power (Watts) 2W
Composition Wirewound
Features Flame Retardant Coating, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case 2616 (6740 Metric), J-Lead
Supplier Device Package SMD
Dimension 0.264" L x 0.157" W (6.70mm x 4.00mm)
Height - Seated (Max) 0.152" (3.85mm)
Number of Terminations 2
Base Product Number SMW2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A106142TR,A106142DKR,116769661,1-1676966-1,1-1676966-1-ND,A106142CT
Standard Package 2,000
Win Source Part Number 1014345-SMW2R27JT
Ultra Librarian 3D Model Ultra Librarian SMW2R27JT CAD Model

Description

The TE Connectivity Passive Product SMW2R27JT is a surface-mount chip resistor that has a power of 2W and a resistance of 270 mOhms.

  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Height: 0.152 inches when seated
  • Package/Case: 2616 (6740 Metric), J-Lead
  • ECCN: EAR99 compliant
  • MSL Level: 1 (unlimited)
