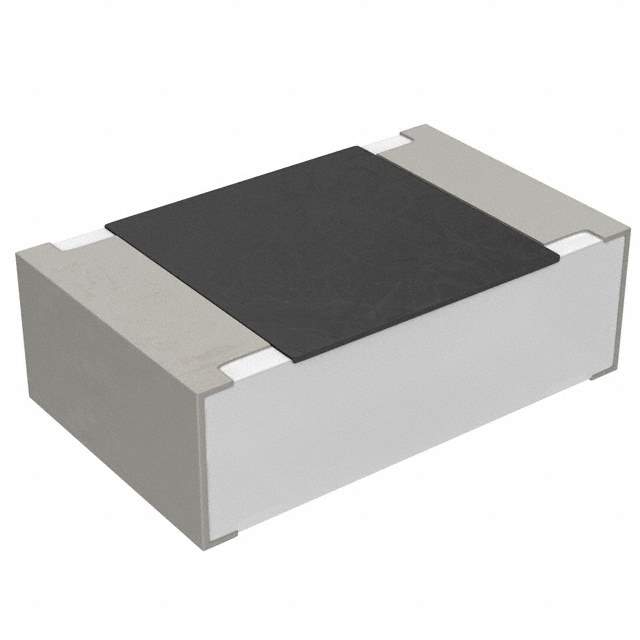

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCF
Package Tape & Reel (TR)
Resistance 680 Ohms
Tolerance ±0.5%
Power (Watts) 0.125W, 1/8W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000
Win Source Part Number 1016298-RNCF0805DTC680R
Ultra Librarian 3D Model Ultra Librarian RNCF0805DTC680R CAD Model

Description

Stackpole Electronics Inc's RNCF0805DTC680R is a chip resistor-surface mount that features automotive AEC-Q200.

  • Series: RNCF series
  • Package: tape & reel (TR)
  • Standard Package: 5,000
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±50ppm/°C
  • Power (Watts): 0.125W, 1/8W
  • Composition: thin film
  • Terminations: two
  • Resistance: 680 Ohms
  • Package/Case: 0805 (2012 Metric)
  • Operating Temperature: -55°C ~ 155°C
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.21.0030
