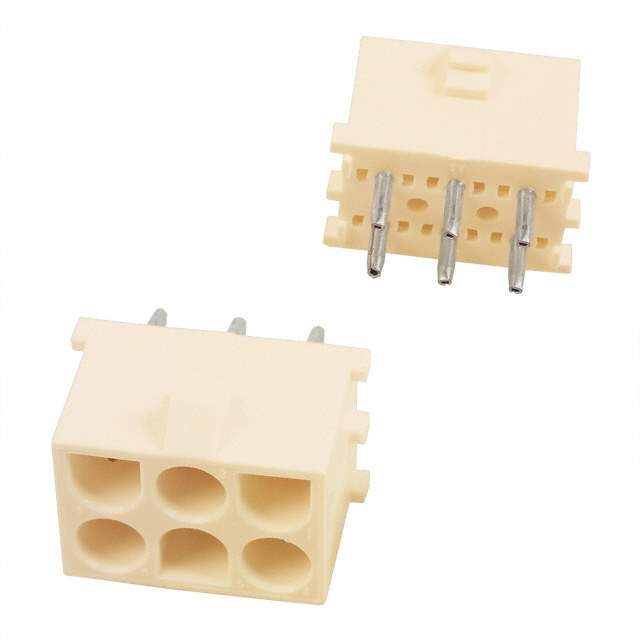

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.250" (6.35mm)
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Insulation Color Natural
Insulation Height 0.550" (13.97mm)
Contact Length - Post 0.155" (3.94mm)
Material Flammability Rating UL94 V-2
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Contact Material Phosphor Bronze
Base Product Number 350762
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-350762-4,-350762-4-SI,3507624,-350762-4-CSI,A1496
Standard Package 100
Win Source Part Number 1334334-350762-4
Ultra Librarian 3D Model Ultra Librarian 350762-4 CAD Model

Description

The 1334334-350762-4 is a 6-position female socket header from TE Connectivity AMP Connectors.

  • Flammability Rating: UL94 V-2
  • Insulation Material: Polyamide (PA) and Nylon
  • Pitch-Mating: 0.250" (6.35mm)
  • Packaging: Bulk
