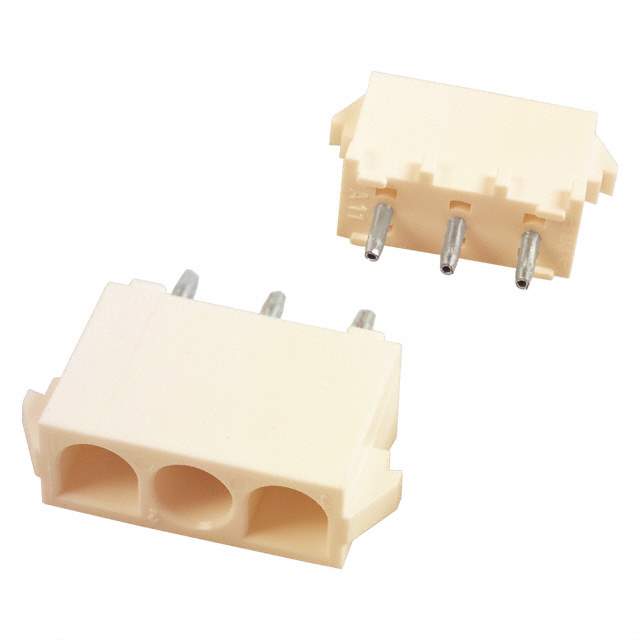

350760-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Packaging Bulk
Connector Type Header
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.250" (6.35mm)
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Insulation Color Natural
Insulation Height 0.550" (13.97mm)
Contact Length - Post 0.155" (3.94mm)
Material Flammability Rating UL94 V-2
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Contact Material Phosphor Bronze
Win Source Part Number 766643-350760-4
Popularity Medium
Supply and Demand Status Limited
Family Name 350760
Introduction Date April 17, 2008
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 350760-4 CAD Model

Description

The 766643-350760-4 is a Universal MATE-N-LOK series connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 3
  • Mounting Type: Through hole
  • Connector Type: Header
  • Contact Gender: Female socket
  • Rows: One
  • Termination: Solder
  • Fastening Type: Locking ramp
  • Contact Material: Phosphor bronze
  • Insulation Material: Polyamide (PA), nylon
  • Insulation Color: Natural
  • Pitch-Mating: 0.250" (6.35mm)
  • Supply and Demand: Limited
  • Halogen Free: Yes
