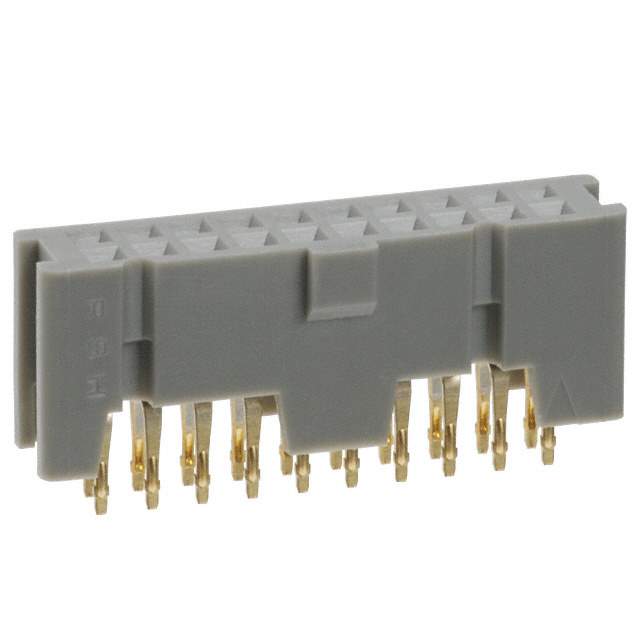

8520-4500PL Real Image
Same model may have multiple batches, images only for reference.

8520-4500PL

Part No 8520-4500PL
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN SOCKET PCB VERT 20POS .1"
Datasheet
8520-4500PL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 8500
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 12μin (0.30μm)
Insulation Color Gray
Insulation Height 0.425" (10.80mm)
Contact Length - Post 0.110" (2.79mm)
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Polarizing Key
Current Rating 1A
Voltage Rating 1000V
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Manufacturer Homepage www.3m.comesd
RoHS State Request Verification
Win Source Part Number 758888-8520-4500PL
Popularity Medium
Supply and Demand Status Limited
Family Name 8500
Introduction Date October 20, 2005
ECCN EAR99
Country of Origin Japan
Halogen Free Unknown
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 8520-4500PL CAD Model

Description

The 3M 8500 series connector is a board-to-board or cable connector that features a polarizing key for easy mating. This connector is a receptacle type with 20 positions and 2 rows, and is loaded with female sockets.

  • Voltage Rating: 1000V
  • Current Rating: 1A
  • Contact Material: copper alloy
  • Insulation Material: polybutylene terephthalate (PBT) with a glass-filled feature
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Row Spacing-Mating: 0.100 inches (2.54mm)
  • Mounting Type: through hole
  • Fastening Type: push-pull
  • Contact Finish-Mating: gold with a thickness of 12μin (0.30μm)
  • Contact Finish-Post: gold with a flash thickness
  • Insulation Color: gray
  • Insulation Height: 0.425 inches (10.80mm)
