Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 9
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-2
Insulation Color Natural
Applications General Purpose
Base Product Number 350432
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 3504324,A31745
Standard Package 100
Win Source Part Number 1212972-350432-4
Ultra Librarian 3D Model Ultra Librarian 350432-4 CAD Model

Description

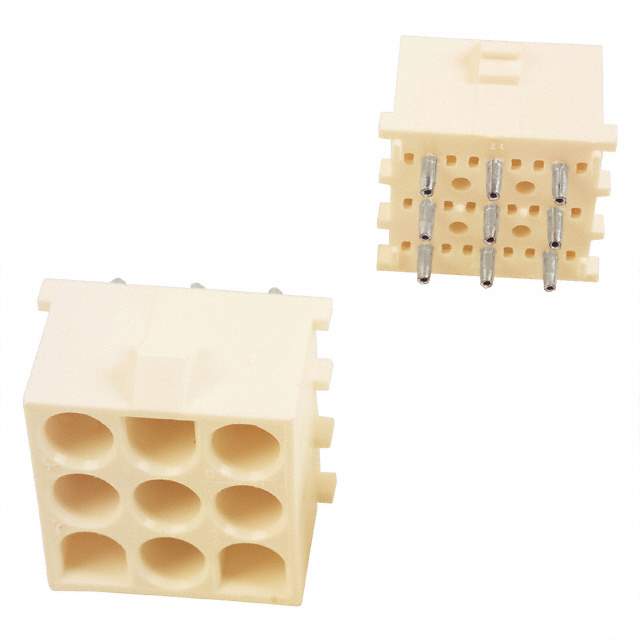

The 1043246 is a Universal MATE-N-LOK header connector with 9 positions and 3 rows.

  • Positions: 9
  • Rows: 3
  • Pitch: 0.250" (6.35mm)
  • Connection Style: Board to Cable/Wire
  • Contact Type: Male Pin
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Natural
  • Shrouded: Yes, 4 Walls
  • Packaging: Bulk
  • Standard Package Quantity: 100
