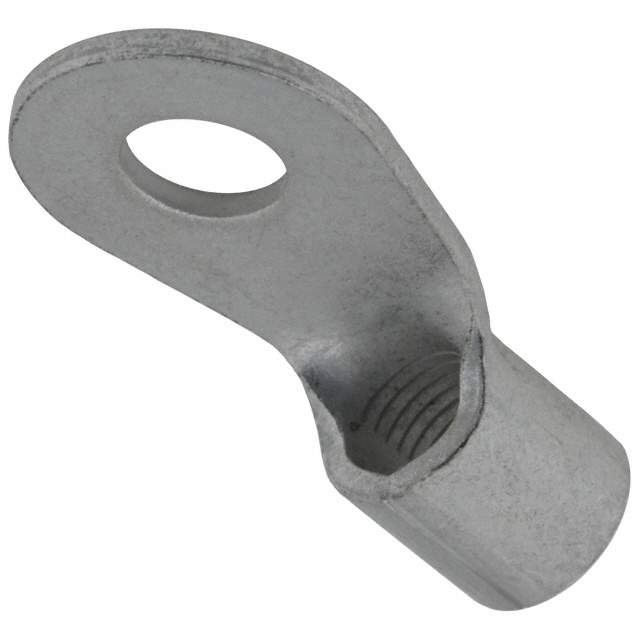

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Series Solistrand
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.057" (1.45mm)
Width - Outer Edges 0.625" (15.88mm)
Length - Overall 1.246" (31.65mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 6 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Termination
Contact Material Copper
Contact Finish Tin
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 906597-33465
Ultra Librarian 3D Model Ultra Librarian 33465 CAD Model

Description

The 836813 is a ring connector from TE Connectivity's Solistrand series.

  • Termination: crimp
  • Contact Finish: tin
  • Wire Gauge: 6 AWG
  • Terminal Type: circular
  • Contact Material: copper
  • Insulation: non-insulated
  • Overall Length: 1.246" (31.65mm)
  • Width: 0.625" (15.88mm)
  • Thickness: 0.057" (1.45mm)
  • Features: brazed seam and serrated termination
  • Package: 100 pieces
  • Mounting: free hanging (in-line)
  • Voltage: -
  • Temperature Range: -55°C to 125°C
