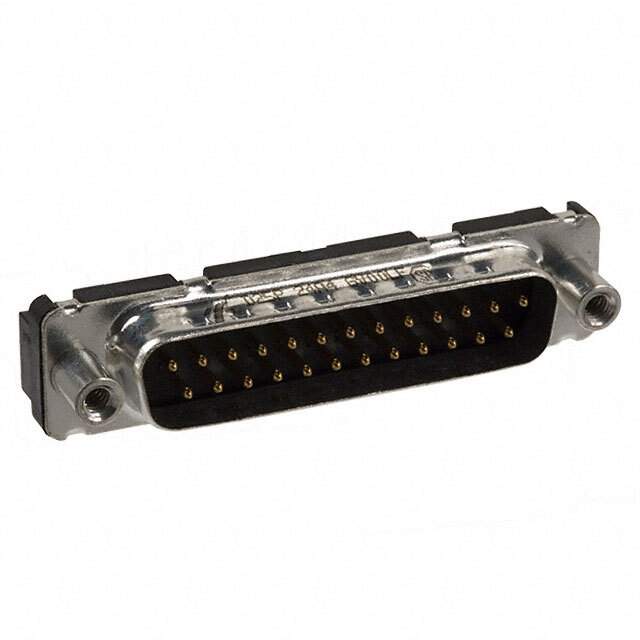

D25P24A4GV00LF Real Image
Same model may have multiple batches, images only for reference.

D25P24A4GV00LF

Part No D25P24A4GV00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 25POS VERT SLDR / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Features Board Lock, Grounding Indents
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D25P24
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-1503
Standard Package 20
Win Source Part Number 1333149-D25P24A4GV00LF
Ultra Librarian 3D Model Ultra Librarian D25P24A4GV00LF CAD Model

Description

The Amphenol ICC (FCI) 1333149-D25P24A4GV00LF is a 25-position D-sub connector assembly.

  • Color: Black
  • Feature: Board Lock, Grounding Indents
  • Connector Type: Plug
  • Contact Gender: Male Pins
  • Contact Type: Signal
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Material: Phosphor Bronze
  • Connector Style: D-sub
  • Voltage Rating: 300V
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 20
  • Mounting Style: Through Hole
  • Flange Feature: Mating Side, Female Screwlock (4-40)
  • Shell Material Finish: Steel with Tin-Nickel Plated
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Shell Size and Connector Layout: 3 (DB, B)
  • Temperature Range: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Number: 609-1503
  • RoHS: Compliant
