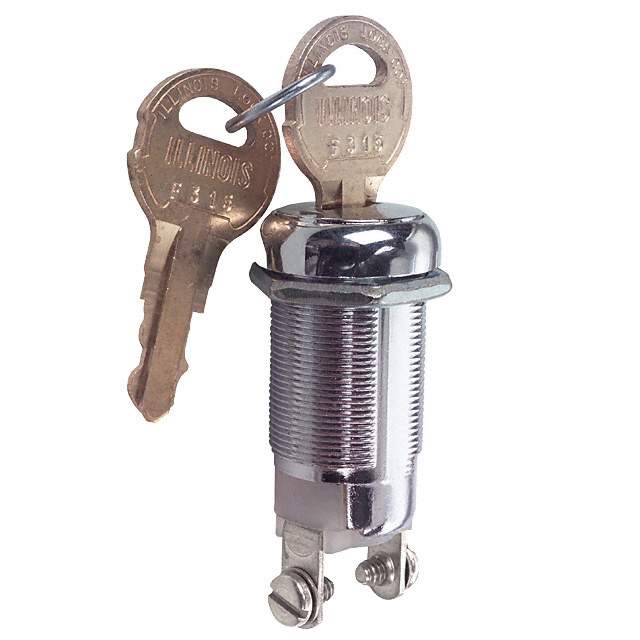

2SWK131AL101 Real Image
Same model may have multiple batches, images only for reference.

2SWK131AL101

Part No 2SWK131AL101
Manufacturer TE Connectivity
Catalog Keylock Switches
Description SWITCH KEYLOCK 2POS SPST 1A 120V  /  Keylock Switch 2 Position SPST 1A (AC) 120 VAC DC Panel Mount
Datasheet
2SWK131AL101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Keylock Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series SWK
Package Bulk
Circuit SPST
Number of Positions 2
Switch Function Off-On
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 1A (AC)
Voltage Rating - AC 120 V
Actuator Type Flat Key
Key Removable Positions 1 only
Angle of Throw 90°
Contact Material Silver (Ag)
Mounting Type Panel Mount
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 19.20mm Dia
Depth Behind Flange 42.70mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number 2SWK
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -2SWK131AL101-SI,450-1006,1-1437597-7
Standard Package 25
Win Source Part Number 996275-2SWK131AL101
Ultra Librarian 3D Model Ultra Librarian 2SWK131AL101 CAD Model

Description

The 2SWK131AL101 is a keylock switch that is manufactured by TE Connectivity ALCOSWITCH Switches.

  • Series: SWK
  • Positions: Two
  • Circuit: Single-pole, single-throw (SPST)
  • Switch Function: Off-on
  • Actuator Type: Flat key
  • Voltage Rating: 120V AC
  • Current Rating: 1A
