Same model may have multiple batches, images only for reference.

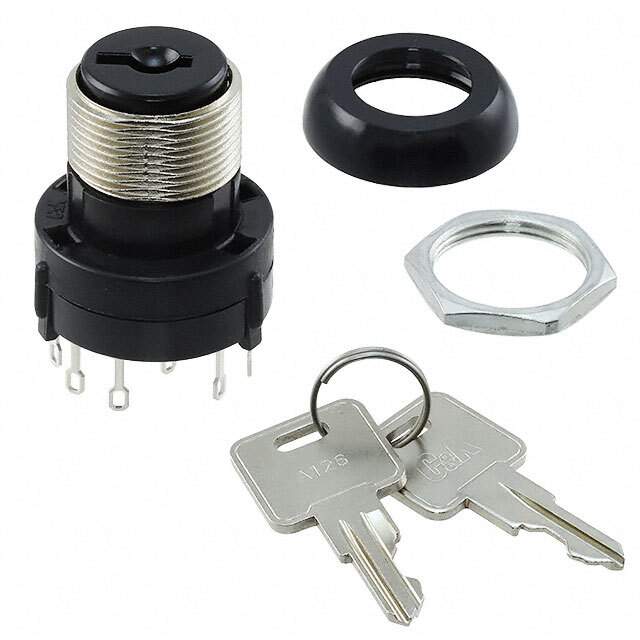

A3141U2A1NZRQ Real Image
Same model may have multiple batches, images only for reference.

A3141U2A1NZRQ

Part No A3141U2A1NZRQ
Manufacturer C&K Components
Catalog Keylock Switches
Description SWITCH KEYLK 2POS 3PDT 2.5A 125V / Keylock Switch 2 Position 3PDT 2.5A (AC), 350mA (DC) 125 VAC 125 VDC Panel Mount
Datasheet
A3141U2A1NZRQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Keylock Switches
Mfr C&K
Series A
Package Tray
Circuit 3PDT
Number of Positions 2
Switch Function On-On
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 2.5A (AC), 350mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flat Key
Key Removable Positions All
Angle of Throw 90°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 19.30mm Dia
Temperature Range - Operating -30°C ~ 85°C
Depth Behind Flange 32.66mm
Electrical Life 15,000 Cycles
Base Product Number A3141U2A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN10913,*A3141U2A1NZRQ,A3141U2A1NZRQ-ND,-A3141U2A1NZRQ
Standard Package 18
Win Source Part Number 1000019-A3141U2A1NZRQ
Ultra Librarian 3D Model Ultra Librarian A3141U2A1NZRQ CAD Model

Description

The C&K A3141U2A1NZRQ is a keylock switch with 3PDT circuit and non-shorting (BBM) contact timing. A3141U2A1NZRQ is manufactured by C&K.

  • Circuit: 3PDT
  • Contact Timing: Non-Shorting (BBM)
  • Switch Function: On-On
  • Actuator Type: Flat Key
  • Current Rating: 2.5A (AC), 350mA (DC)
  • Operating Temperature: -30°C ~ 85°C
  • Voltage Rating: 125V (AC/DC)
  • Mounting Type: Panel Mount
  • Panel Cutout Dimension: 19.30mm Dia.
  • Depth Behind Flange: 32.66mm
  • Electrical Life: 15,000 cycles
  • Packaging: Tray
  • Standard Package: 18 per package
