Same model may have multiple batches, images only for reference.

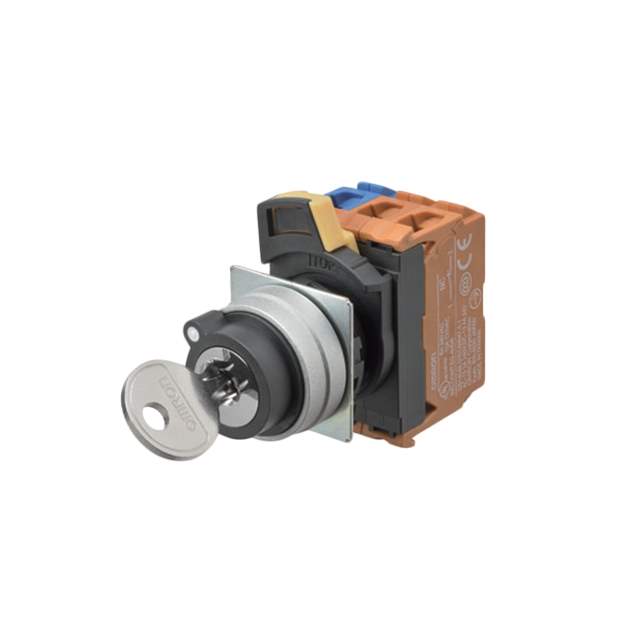

A22NK-2ML-01BA-G202 Real Image
Same model may have multiple batches, images only for reference.

A22NK-2ML-01BA-G202

Part No A22NK-2ML-01BA-G202
Manufacturer Omron
Catalog Keylock Switches
Description SWITCH KEYLCK 2POS DPST 10A 120V / Keylock Switch 2 Position DPST-NC 10A (AC), 8A (DC) 120 VAC 24 VDC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Keylock Switches
Mfr Omron Automation and Safety
Series A22NK
Package Bulk
Circuit DPST-NC
Number of Positions 2
Switch Function On-Mom
Contact Timing Not Specified
Current Rating (Amps) 10A (AC) , 8A (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 24 V
Actuator Type Flat Key
Key Removable Positions Left
Angle of Throw 90°
Mounting Type Panel Mount
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 22.30mm Dia
Features IP66
Temperature Range - Operating -25°C ~ 70°C
Depth Behind Flange 45.30mm
Mechanical Life 500,000 Cycles
Electrical Life 500,000 Cycles
Base Product Number A22NK
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1341496-A22NK-2ML-01BA-G202
Ultra Librarian 3D Model Ultra Librarian A22NK-2ML-01BA-G202 CAD Model

Description

The A22NK-2ML-01BA-G202 is a keylock switch from Omron Automation and Safety.

  • Number of Positions: Two
  • Circuit: Double-Pole, Single-Throw Normally Closed (DPST-NC)
  • Switch Function: On-Mom
  • Current Rating (AC): 10A
  • Current Rating (DC): 8A
  • Voltage Rating (AC): 120V
  • Voltage Rating (DC): 24V
  • Mechanical Life: 500,000 cycles
  • Electrical Life: 500,000 cycles
  • Actuator Type: Flat key
  • Angle of Throw: 90°
  • Panel Cutout Dimension: 22.30mm Dia
  • Mounting Type: Panel mount
  • Operating Temperature: -25°C to 70°C
  • ECCN: EAR99
