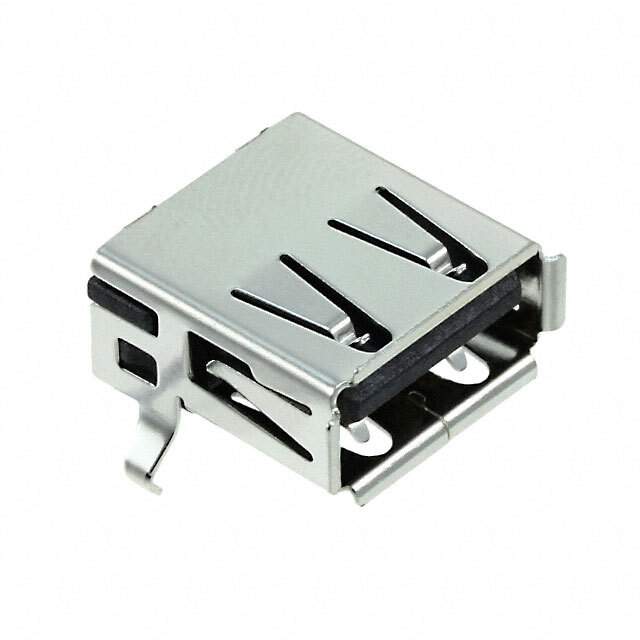

Same model may have multiple batches, images only for reference.

292303-4

Name: 292303-4
Brand: TE Connectivity
SKU: 762076
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	292303-4
Manufacturer	TE Connectivity
Catalog	USB, DVI, HDMI Connectors
Description	CONN USB TYPE A R/A PCB
Datasheet	292303-4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube
Connector Type	USB - A
Number of Contacts	4
Gender	Receptacle
Specifications	USB 2.0
Mounting	Through Hole, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Board Lock
Operating Temperature Range	-55°C ~ 85°C
Number of Ports	1
Current Rating	1A per Contact
Voltage Rating DC	30VAC
Mating Cycles	1500
Shielding	Shielded
Contact Finish	Gold or Gold-Palladium
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	762076-292303-4
Popularity	Medium
Supply and Demand Status	Limited
Family Name	292303
Introduction Date	August 21, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 292303-4 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors USB-A receptacle is a connector manufactured by TE Connectivity AMP Connectors.

Current Rating: 1A per contact
Shielded: Yes
Voltage Rating DC: 30VAC
Halogen-Free: Compliant
EOL Date: 2026
Supply and Demand Status: Limited
