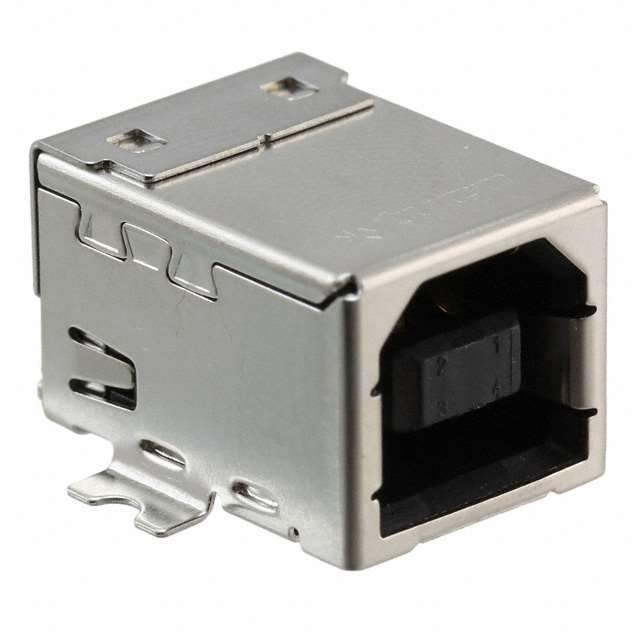

Same model may have multiple batches, images only for reference.

1-1734346-1

Name: 1-1734346-1
Brand: TE Connectivity
SKU: 760241
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-1734346-1
Manufacturer	TE Connectivity
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT USB TYPE B SMT R/A
Datasheet	1-1734346-1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel package
Connector Type	USB - B
Number of Contacts	4
Gender	Receptacle
Specifications	USB 2.0
Mounting	Surface Mount, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Board Guide, Solder Retention
Operating Temperature Range	0°C ~ 50°C
Number of Ports	1
Current Rating	1A
Voltage Rating DC	30VAC
Mating Cycles	1500
Contact Finish	Gold
Shell/Shielding Material	Phosphor Bronze, Steel, Stainless
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	760241-1-1734346-1
Popularity	Medium
Supply and Demand Status	Limited
Family Name	1734346
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	China
Halogen Free	Not Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 1-1734346-1 CAD Model

Description

The 760241-1-1734346-1 is a USB-B receptacle connector from TE Connectivity AMP Connectors.

Connector Type: USB-B Receptacle
Contact Finish: Gold
Mounting Type: Surface Mount, Right Angle
Current Rating: 1A
Voltage Rating DC: 30VAC
Mating Cycles: 1500
USB Compliance: 2.0
HTSUS Code: 8536.69.4000
ECCN: EAR99
