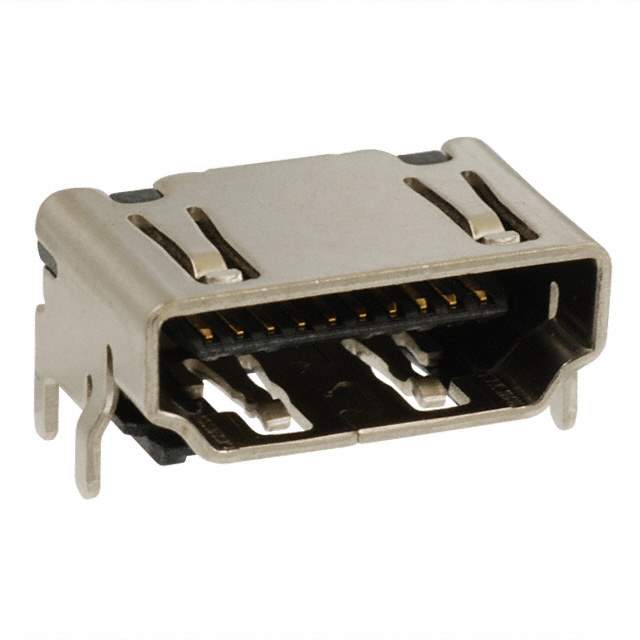

10029449-001RLF Real Image
Same model may have multiple batches, images only for reference.

10029449-001RLF

Part No 10029449-001RLF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description HDMI TYPE A RECEPTACLE | CONN RCPT 1.4 HDMI 19POS SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol ICC (FCI)
Packaging Reel
Connector Type HDMI
Number of Contacts 19
Gender Receptacle
Specifications HDMI 1.4
Mounting Style SMT, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Temperature Range - Operating -20°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.5A
Voltage - Rated 40V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold, GXT
Shell/Shielding Material Steel
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 750917-10029449-001RLF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10029449-001RLF CAD Model

Description

The Amphenol ICC (FCI) 750917-10029449-001RLF HDMI connector is a 19-contact connector with a receptacle gender.

  • Specifications: HDMI 1.4
  • Shielding: Yes
  • Voltage Rating: 40V
  • Temperature Range: -20°C ~ 85°C
  • Mounting Style: SMT, Right-Angle, Through-Hole
  • Mounting Feature: Horizontal
  • Popularity: Medium
  • Supply & Demand: Limited
  • Manufacturer Pack Quantity: 1
