Same model may have multiple batches, images only for reference.

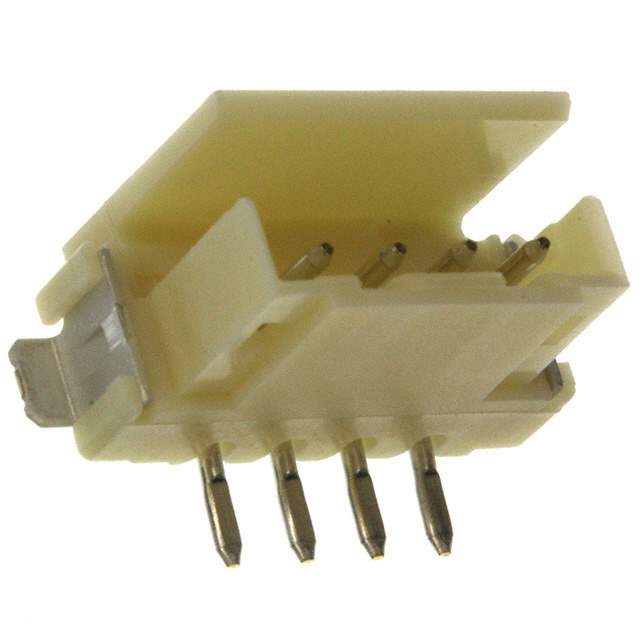

292174-4 Real Image
Same model may have multiple batches, images only for reference.

292174-4

Part No 292174-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.177" (4.50mm)
Insulation Height 0.307" (7.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 751059-292174-4
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 292174-4 CAD Model

Description

TE Connectivity 751059-292174-4 is a 4-position surface mount header connector with male pins.

  • Voltage Rating: 125VAC
  • Applications: general-purpose
  • Fastening Type: detent lock
  • Contact Material: brass
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: tin
  • RoHS Compliant: Yes
  • Temperature Range: operating
  • Shrouded: 4 walls
  • Manufacturer: TE Connectivity
