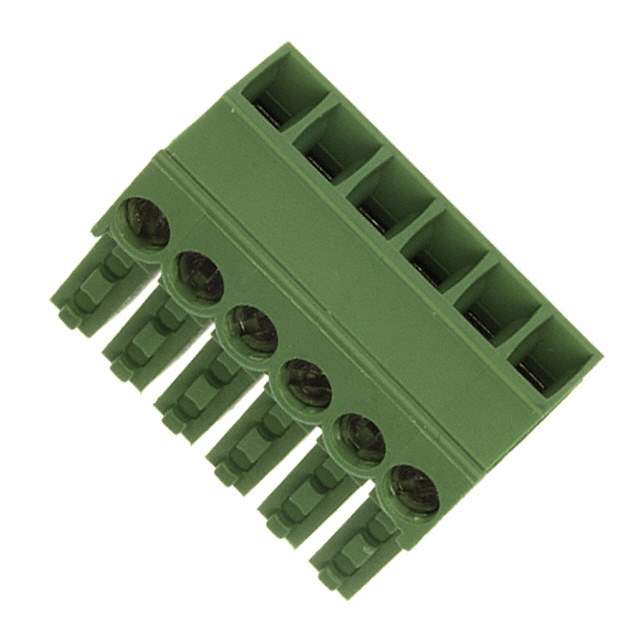

284506-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Type Plug, Female Sockets
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.138" (3.50mm)
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - UL 11 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 14-30 AWG
Wire Gauge or Range - mm2 0.05-2mm2
Color Green
Temperature Range - Operating -40°C ~ 110°C
Contact Mating Finish Tin
Features Side Stacking
Material Flammability Rating UL94 V-0
Screw Size M2
Torque - Screw 0.31 Nm (2.7 Lb-In)
Wire Strip Length 5-6mm
Contact Material Phosphor Bronze
Housing Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.437" (11.10mm)
Base Product Number 284506
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -284506-6-LSI,2845066,284506-6-ND,A98377,-284506-6-SI
Standard Package 100
Win Source Part Number 1032652-284506-6
Ultra Librarian 3D Model Ultra Librarian 284506-6 CAD Model

Description

The Buchanan terminal block series is a plug, female sockets type of connector that is suitable for board to board or cable applications.

  • Pitch: 0.138" (3.50mm)
  • Wire Gauge/Range: 14-30 AWG (0.05-2mm2)
  • Current Rating: 11 A (UL)
  • Voltage Rating: 300 V (UL)
  • Termination Style: screw - rising cage clamp
  • Screw Size: M2
  • Torque: 0.31 Nm (2.7 Lb-In)
  • Wire Strip Length: 5-6mm
  • Temperature Range: -40°C to 110°C
  • Package: bulk
