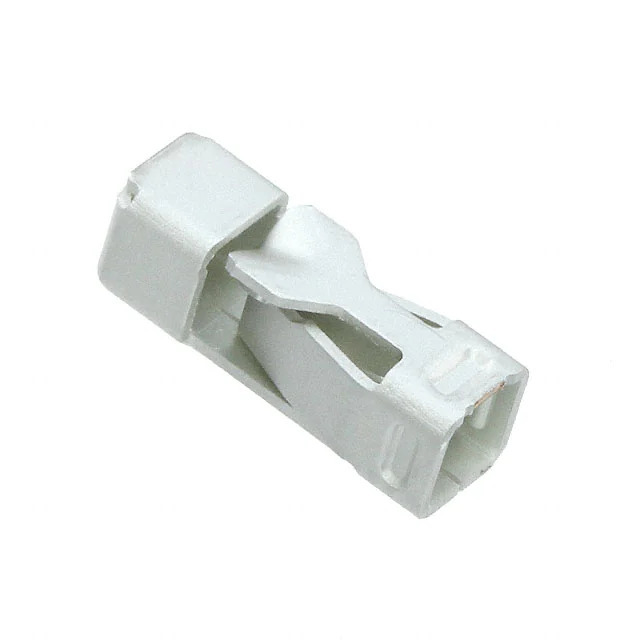

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Contacts
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Style Board to Cable/Wire
Connector Type Contact, Poke-In Wire
Mounting Type Surface Mount, Right Angle
Termination Solder
Pitch -
Wire Gauge 18-22 AWG
Features -
Contact Finish Tin
Contact Material Copper Alloy
Fastening Type -
Housing Color -
Housing Material -
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 300 V
Current Rating (Amps) -
Mating Cycles -
Base Product Number 2834167
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363488-2834167-3
Ultra Librarian 3D Model Ultra Librarian 2834167-3 CAD Model

Description

The TE Connectivity AMP Connectors Solid State Lighting Connector Contacts are designed for solid state lighting applications.

  • Temperature Range: -40°C ~ 105°C
  • Contact Finish: Tin
  • Mounting Type: Surface Mount, Right Angle
  • Voltage Rating: 300V
  • Wire Gauge: 18-22 AWG
  • Termination: Solder
