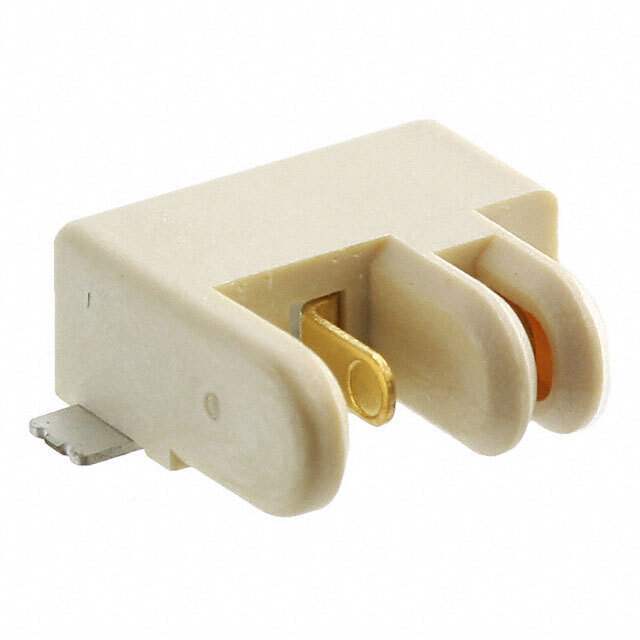

10120045-200LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10120045-200LF

Part No 10120045-200LF
Manufacturer Amphenol FCI
Catalog Solid State Lighting Connectors
Description CONN SSL RCPT & BLADE 2POS 3MM
Datasheet
10120045-200LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324386-10120045-200LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Solid State Lighting Connectors > Solid State Lighting Connector Assemblies
Part Status Active
Style Board to Board
Connector Type Blade and Receptacle, Hermaphroditic
Number of Positions 2
Mounting Type Board Edge, Surface Mount, Right Angle
Termination Solder
Pitch 0.118" (3.00mm)
Features Solder Retention
Ultra Librarian 3D Model Ultra Librarian 10120045-200LF CAD Model

Description

FEATURES

• Hermaphroditic “mates to itself” design

• Mates under any angle +90° and -60°

• Header contact contains a coined hole, the center of the hole is the intended rotation point

• Reliable dual beam contact

• Receptacle contact will guide itself into the center of the hole

• Pins are protected by housing

• Hold-down option

• Locating peg option
