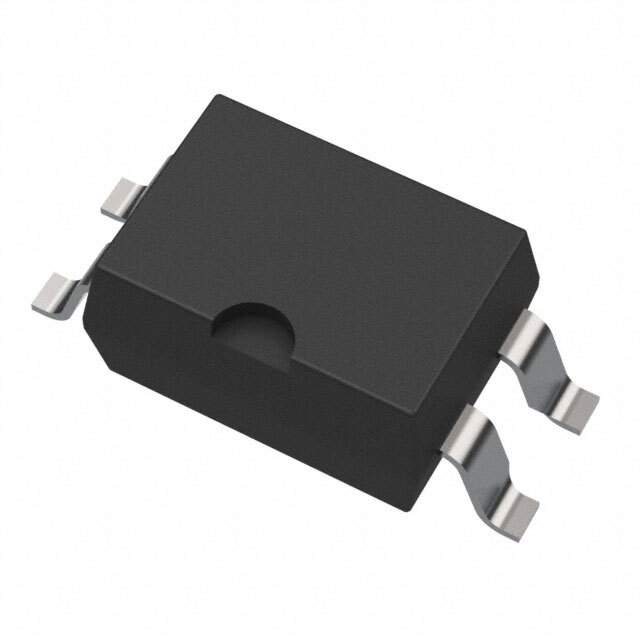

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS Integrated Circuits Division
Series CPC, OptoMOS
Packaging Reel package
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 35 Ohm
Load Current 120mA
Voltage - Input 1.2VDC
Voltage - Load 0 ~ 600 V
Mounting SMD
Termination Style Gull Wing
Package 4-SMD (0.300", 7.62mm)
Manufacturer Package 4-SOP
Relay Type Relay
Win Source Part Number 771731-CPC1394GRTR
Popularity Medium
Supply and Demand Status Limited
Family Name CPC1394
Introduction Date March 09, 2009
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CPC1394GRTR CAD Model

Description

The IXYS Integrated Circuits Division Relay is a high-quality electronic component that is designed to provide a reliable connection for your electrical circuits. It has a Win Source Part Number of 771731-CPC1394GRTR and is part of the CPC OptoMOS series.

  • Circuit Relay: SPST-NO (1 Form A)
  • Load Current: 120mA
  • Load Voltage: 0 ~ 600 V
  • Mounting: Surface-mounting
  • Package: 4-SMD (0.300", 7.62mm)
  • On-State Resistance: 35 Ohms
  • ECCN: EAR99
  • Estimated EOL Date: 2024
