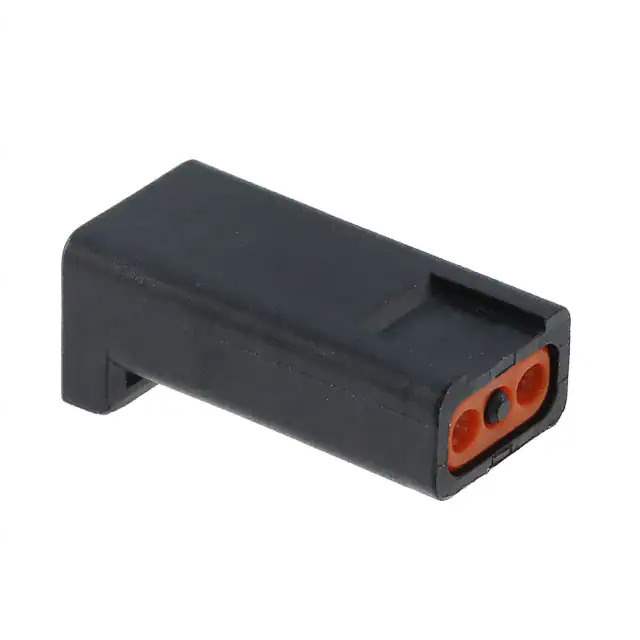

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Assemblies
Mfr TE Connectivity
Series SlimSeal
Package Tray
Product Status Active
Style Cable/Wire to Cable/Wire
Connector Type Receptacle Housing for Pin Contact
Number of Positions 2
Mounting Type Free Hanging (In-Line)
Termination Crimp
Pitch 0.098" (2.50mm)
Fastening Type Latch Holder
Housing Color Black
Housing Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 400V
Current Rating (Amps) 3.5A, 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Mating Cycles 30
Base Product Number 2834075
Standard Package 1,440 pcs
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 849272-2-2834075-2
Ultra Librarian 3D Model Ultra Librarian 2-2834075-2 CAD Model

Description

The SlimSeal Receptacle Housing is a reliable and versatile connector used in solid-state lighting applications. Manufactured by TE Connectivity, this connector offers excellent performance and durability.

  • Positions: 2
  • Pitch: 0.098" (2.50mm)
  • Connector Type: Receptacle Housing for Pin Contact
  • Termination Method: Crimp
  • Fastening Type: Latch Holder
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Ingress Protection: IP67
  • Housing Color: Black
  • Application: Cable/Wire to Cable/Wire
  • Temperature Range: -40°C to 105°C
  • Series: Active
  • Standard Package: 1,440 pcs
