Same model may have multiple batches, images only for reference.

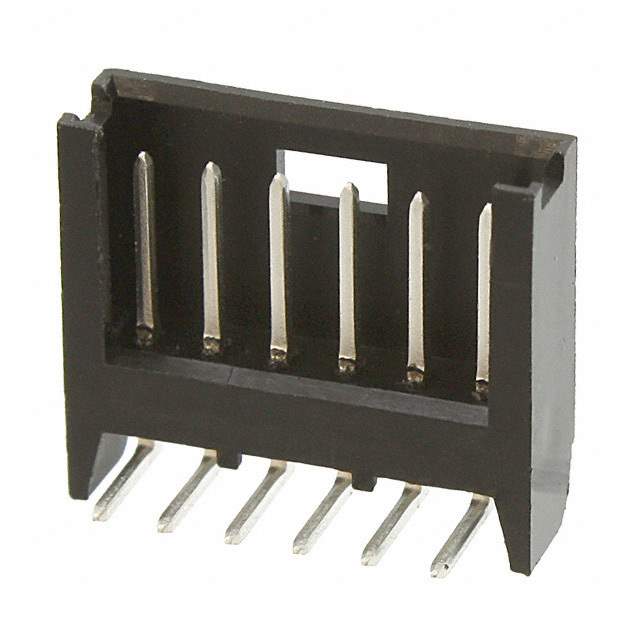

280379-1 Real Image
Same model may have multiple batches, images only for reference.

280379-1

Part No 280379-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description Internal Equipment Connection Wire-to-Board for Discrete Wire 2.54mm Centreline | CONN HEADER R/A 6POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 3 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.260" (6.60mm)
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.197"
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1μin (3.00μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 40V
Contact Finish Thickness - Post 118.1μin (3.00μm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1123468-280379-1
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 280379-1 CAD Model

Description

The 1123468-280379-1 is a header connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 6
  • Mounting: Through hole and right angle
  • Shrouding: Shrouded - 3 wall
  • Application: Board to board or cable
  • Pitch: 0.100" (2.54mm)
  • Current Rating: 3A
  • Supply and Demand: Balanced
  • Voltage Rating: 40V
  • Material: Brass
