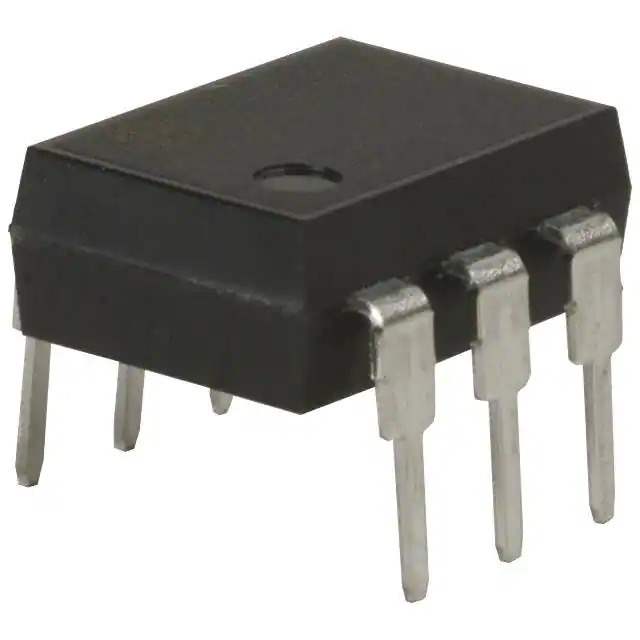

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 150 mA
On-State Resistance (Max) 16 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number AQV45
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 564381-AQV454
Ultra Librarian 3D Model Ultra Librarian AQV454 CAD Model

Description

The PhotoMOS™ AQV454 is a solid-state relay with a SPST-NC (1 Form B) circuit configuration.

  • Load currents: up to 150 mA
  • Voltages: ranging from 0 V to 400 V.
  • Input voltage: 1.14VDC
  • Output types: AC and DC
  • Maximum on-state resistance: 16 Ohms
  • Mounting: through-hole mounting
  • Package: 6-DIP package.
  • Series: PhotoMOS™ AQV series by Panasonic.
  • Supplied in: a tube package containing 50 pieces.
  • Status: active
  • ECCN classification: EAR99
  • Application: applications requiring solid-state relays in the category of electronic components.
