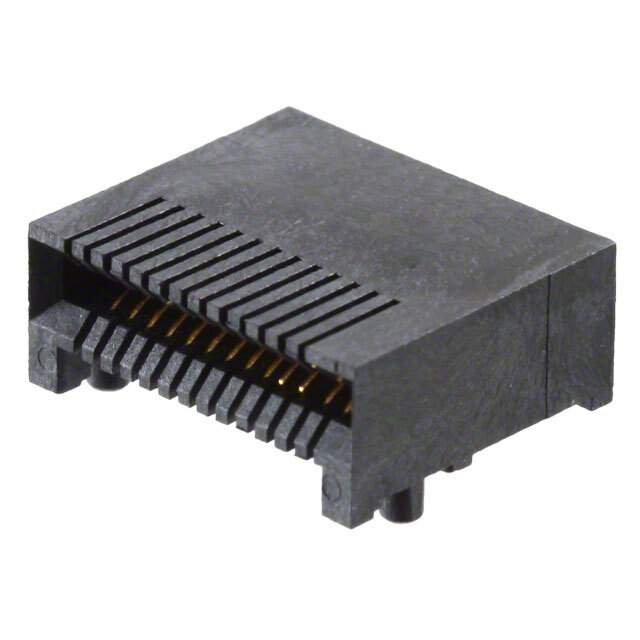

1761987-7 Real Image
Same model may have multiple batches, images only for reference.

1761987-7

Part No 1761987-7
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description Quick Reference Guide | CONN MINI SAS RCP 26P SLD RA SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Style Receptacle
Connector Type SAS, Mini
Number of Positions 26
Mounting Style SMT, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121485-1761987-7
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1761987-7 CAD Model

Description

The TE Connectivity AMP Connectors 1121485-1761987-7 is a 26-position Mini SAS receptacle connector with a gold contact finish thickness of 30.0μin (0.76μm).

  • Positions: 26
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Mounting Style: Surface-mount, Right-angle
  • Features: Board guide
  • Packaging: Reel
  • MSL Level: Unlimited
  • Category: Connectors and Interconnects
  • Manufacturer's Homepage: www.macom.com
