2170563-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel package
Connector Style Receptacle
Connector Type SAS
Number of Positions 29
Mounting SMD
Termination Solder
Features Flange, Mating Guide
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 761801-2170563-1
Popularity Medium
Supply and Demand Status Balance
Family Name 2170563
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 2170563-1 CAD Model

Description

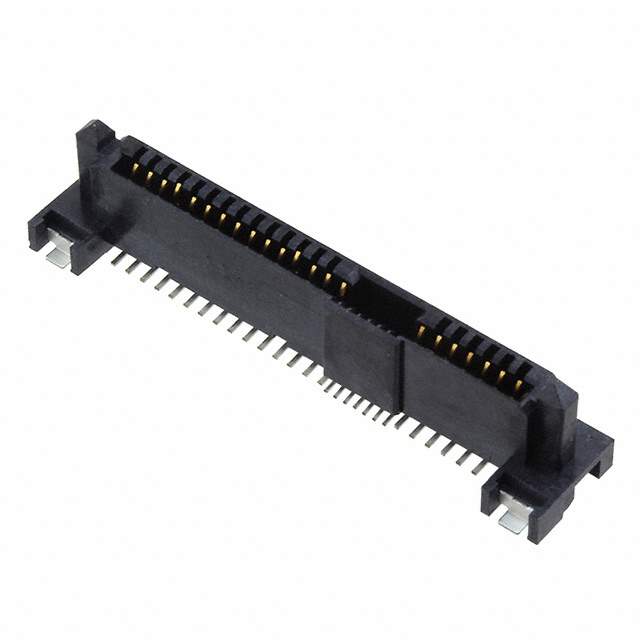

The TE Connectivity AMP Connectors 761801-2170563-1 is a 29-position SAS receptacle connector.

  • Features: Flange, Mating Guide
  • Contact Finish: Gold, 30μin (0.76μm)
  • Termination: Solder
  • Series: 2170563
  • Category: Connectors, Interconnects
  • Packaging: Reel
  • Estimated EOL Date: 2028
  • Popularity: Medium
  • Supply and Demand Status: Balanced
