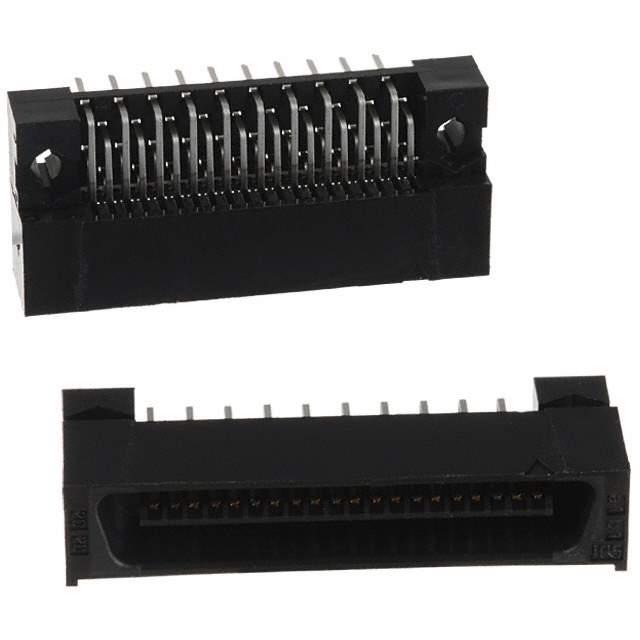

The FX2-40P-1.27DS(71) is a 1.27mm pitch, double row, SMT (Surface Mount Technology) connector from Hirose Electric Co. Ltd. It is part of the FX2 series, designed for board-to-board connections in applications requiring high density and reliable performance. This connector is often used for parallel board stacking.

Applications

• Board-to-board connections
• Parallel board stacking
• Industrial equipment
• Medical devices
• Communication equipment

Features

• 1.27mm pitch
• Double row configuration
• 40 positions
• Surface mount technology (SMT)
• High-density design
• Gold-plated contacts

Benefits

• High-density connections: 1.27mm pitch allows for a large number of connections in a small area.
• Reliable performance: Gold-plated contacts ensure excellent electrical conductivity and corrosion resistance.
• Easy assembly: SMT design simplifies the assembly process.
• Space saving: Compact design allows for high-density board layouts.
• Durable construction: Withstands vibration and shock in demanding applications.

Additional Details

The FX2-40P-1.27DS(71) connector is designed for automated assembly processes. It offers a secure and reliable connection for high-speed data transmission. The gold-plated contacts ensure low contact resistance and long-term reliability. The connector's compact size makes it ideal for use in small form-factor devices. It is designed to meet industry standards for electrical performance and environmental protection. The FX2 series is a popular choice for board-to-board connections in a wide range of electronic devices.
