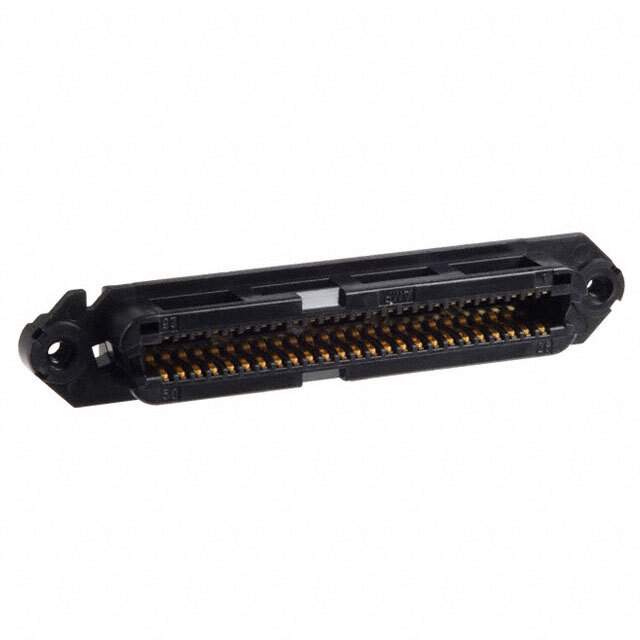

229975-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>Centronics Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 50
Number of Rows 2
Mounting Free Hanging (In-Line)
Termination IDC
Flange Feature Housing/Shell (4-40)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 229975
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number -229975-1-SI,2299751,-HUB-15134-SI,-HUB-15134-SI-ND,A1541,2266-229975-1
Standard Package 100
Win Source Part Number 1333153-229975-1
Ultra Librarian 3D Model Ultra Librarian 229975-1 CAD Model

Description

TE Connectivity AMP Connectors presents a bulk packaged D-Sub Centronics Connector with outer shroud contacts.

  • Connector Type: Receptacle
  • Positions: 50
  • Rows: 2
  • Termination: IDC
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Housing/Shell Flange Feature: 4-40
  • Connector Style: Free Hanging (In-Line)
  • ECCN: EAR99
  • RoHS3: Compliant
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.8000
  • Other Part Numbers: -229975-1-SI, 2299751, -HUB-15134-SI, -HUB-15134-SI-ND, A1541, 2266-229975-1
