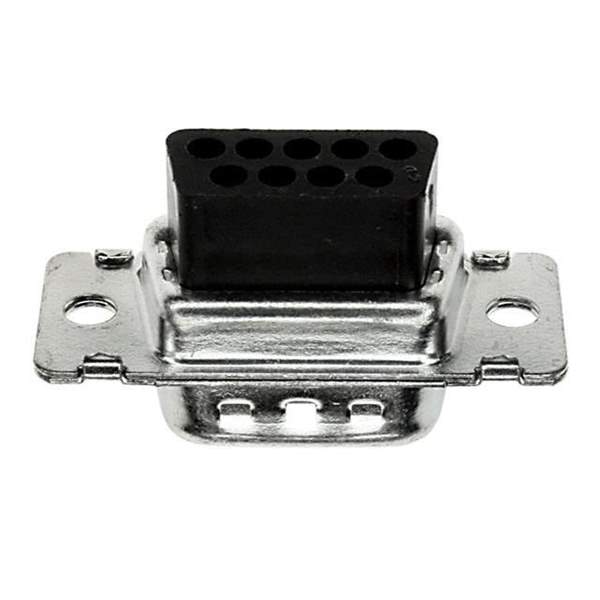

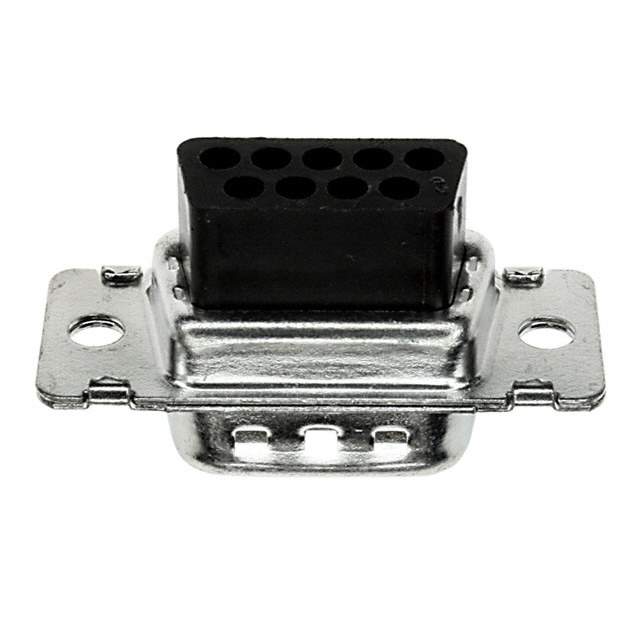

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin Plated
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 205204
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 2052044,2266-205204-4,-205204-4-CSI,-205204-4-SI,A1038
Standard Package 1
Win Source Part Number 1226673-205204-4
Ultra Librarian 3D Model Ultra Librarian 205204-4 CAD Model

Description

The 1226673-205204-4 is a plug for male contacts connector belonging to the D-sub, D-shaped connectors - housings category manufactured by TE Connectivity AMP Connectors.

  • Feature: Grounding indent
  • Suitable for: Signal contact
  • Standard Package: 1
  • Type: Free hanging (in-line)
  • Reliability: A reliable component used in various electronic devices.
