Same model may have multiple batches, images only for reference.

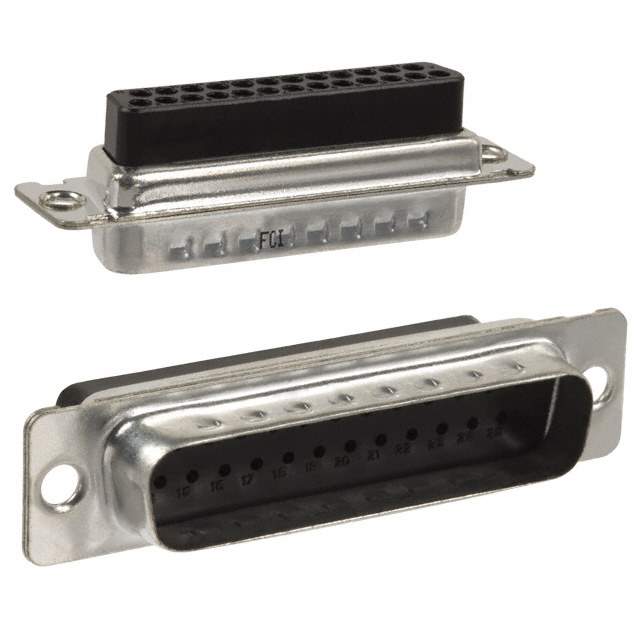

865625PLTXLF Real Image
Same model may have multiple batches, images only for reference.

865625PLTXLF

Part No 865625PLTXLF
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB HOUSING PLUG 25POS / Plug for Male Contacts Housing D-Sub Connector 25 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Housings
Mfr Amphenol ICC (FCI)
Series 8656
Package Bulk
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Type Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin/Zinc Plated
Temperature Range - Operating -55°C ~ 125°C
Mating Cycles 200
Dielectric Material Thermoplastic
Color Black
Note Contacts Not Included
Base Product Number 865625
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 609-1470
Standard Package 100
Win Source Part Number 1186702-865625PLTXLF
Ultra Librarian 3D Model Ultra Librarian 865625PLTXLF CAD Model

Description

The Amphenol ICC 865625PLTXLF is a D-sub housing connector with a 25-position and 2-row configuration.

  • Position: 25
  • Row Configuration: 2
  • Plug Type: plug for male contacts
  • Color: black
  • Features: grounding indents
  • Mounting: panel mounting
  • Housing/Shell Material: steel
  • Housing/Shell Plating: tin/zinc plated
  • Series: 8656
  • Shell Size: 3 (DB, B)
  • Package: bulk
  • Standard Package Quantity: 100
  • Operating Temperature Range: -55°C to 125°C
