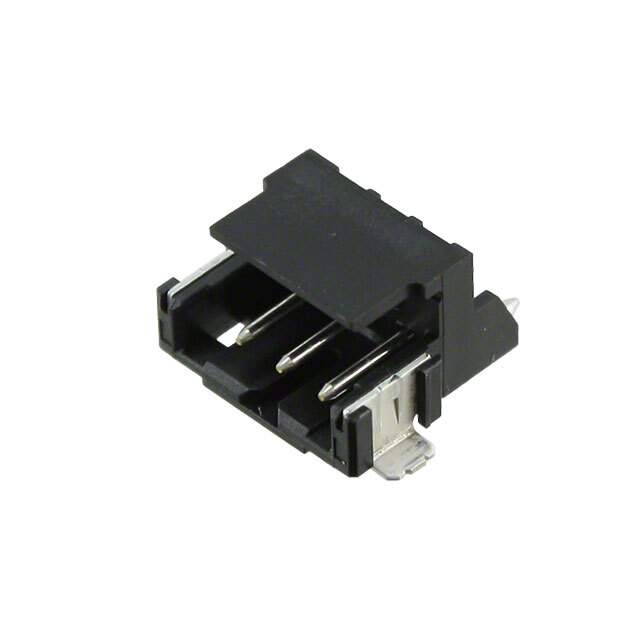

2-292173-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802623-2-292173-3
Ultra Librarian 3D Model Ultra Librarian 2-292173-3 CAD Model

Description

The TE Connectivity AMP Connectors 802623-2-292173-3 is a surface mount, right-angle header connector.

  • Positions: 3
  • Contact Type: Male Pin
  • Rows: 1
  • Pitch Mating: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Voltage Rating: 125VAC
  • Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
  • Flammability: UL94 V-0
  • Shrouding: Shrouded - 4 wall
  • Insulation Height: 0.228" (5.80mm)
  • Contact Shape: Square
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
