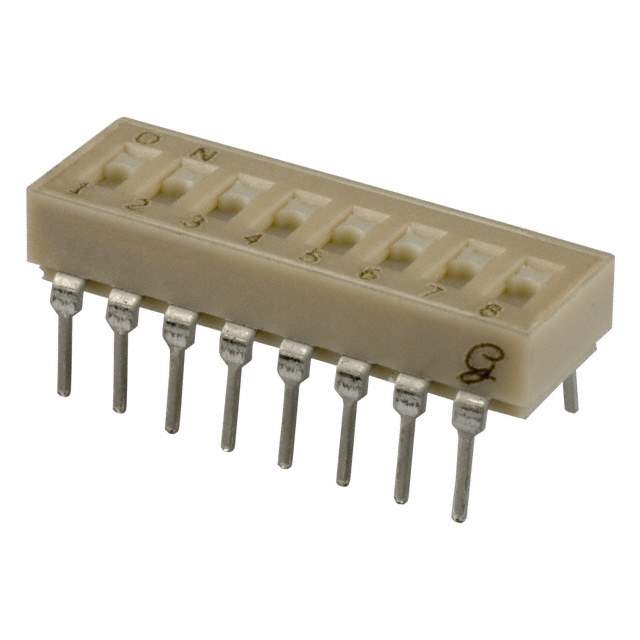

90B08ST Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 90B
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.195" (4.95mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.870" (22.10mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 90B08
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names GH7224
Standard Package 20
Win Source Part Number 1160901-90B08ST
Ultra Librarian 3D Model Ultra Librarian 90B08ST CAD Model

Description

The 90B08 DIP switch is a single pole single throw (SPST) switch with a slide actuator from Grayhill Inc.

  • Circuit Configuration: SPST
  • Pitch: 0.100" (2.54mm), Full
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Length: 0.870" (22.10mm)
  • Height Above Board: 0.195" (4.95mm)
  • Mechanical Life: 2,000 cycles
  • Electrical Life: 2,000 cycles
  • Washable: Yes
  • Termination Style: PC Pin
  • Package: Tube
  • Standard Package: 20
  • Material: Thermoplastic
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
