STMicroelectronics HSP061-2P6: ESD Protection for High-Speed Interfaces
The HSP061-2P6 is a robust ESD protection device designed by STMicroelectronics to safeguard high-speed data lines from electrostatic discharge (ESD). This component is a must-have for modern electronics where high-speed interfaces are ubiquitous, and the risk of ESD damage is significant. The HSP061-2P6 is specifically engineered to provide reliable protection for applications such as USB 2.0, HDMI, Ethernet, and other high-speed data lines.
Featuring a bidirectional configuration, the HSP061-2P6 can efficiently clamp ESD strikes to a safe level, preventing damage to sensitive circuitry downstream. The device is characterized by its low line capacitance, which is crucial for maintaining signal integrity in high-speed communication without compromising data throughput or causing unwanted signal attenuation.

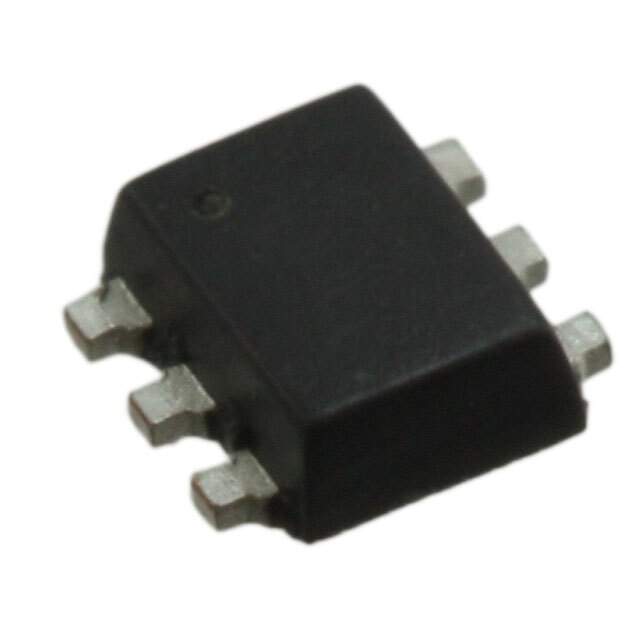

The HSP061-2P6 is housed in a compact SOT666 package, which is not only space-saving but also offers a low-profile solution for densely packed PCBs. This package design allows for easy integration into existing designs without the need for significant layout changes. Additionally, the device's small form factor makes it an excellent choice for portable electronics where space is at a premium.
STMicroelectronics has designed the HSP061-2P6 with a breakdown voltage of 6V, ensuring compatibility with a wide range of standard operating voltages. The low clamping voltage of this protection device ensures that any ESD strike is dealt with effectively, providing a high level of protection for the connected ICs.
The HSP061-2P6 also boasts a high ESD protection level, meeting the IEC61000-4-2 standard, which calls for ESD immunity of up to ±15kV (air discharge) and ±8kV (contact discharge). This level of protection is essential for electronic devices that are frequently handled by users, such as smartphones, laptops, and other consumer electronics.
In summary, the HSP061-2P6 from STMicroelectronics is an indispensable component for designers looking to enhance the durability and reliability of their high-speed digital interfaces against the threats posed by ESD events.
