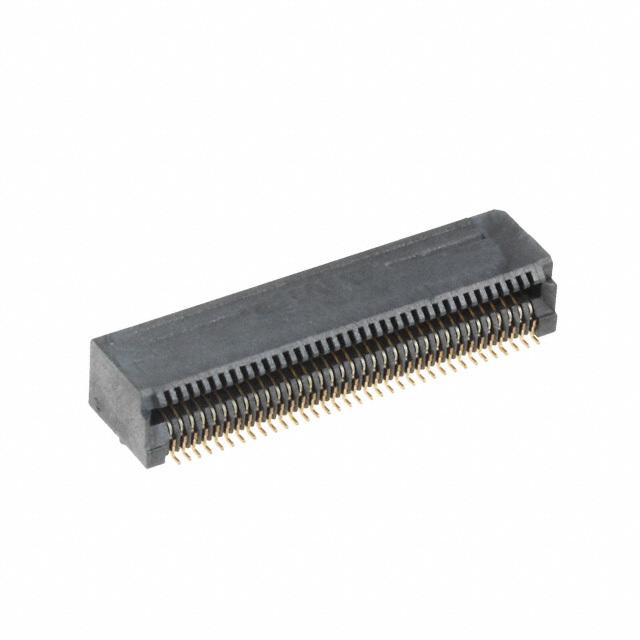

1367337-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1367337-1

Part No 1367337-1
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description CONN RCPT 70POS RTANG .8MM SMD
Datasheet
1367337-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel package
Connector Style Receptacle
Connector Type PT
Number of Positions 70
Mounting Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Win Source Part Number 760393-1367337-1
Popularity Medium
Supply and Demand Status Limited
Family Name 1367337
Introduction Date March 25, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1367337-1 CAD Model

Description

The TE Connectivity AMP Connectors 760393-1367337-1 is a high-quality electronic component that is ideal for use in a wide range of applications.

  • Type: Receptacle
  • Mounting Style: Right Angle
  • Termination: Surface Mount, Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15μin (0.38μm)
  • Popularity: Medium
  • Supply and Demand: Limited
  • ECCN: EAR99
  • Halogen Free: Yes
  • Application: Board Guide
  • Family: 1367337
