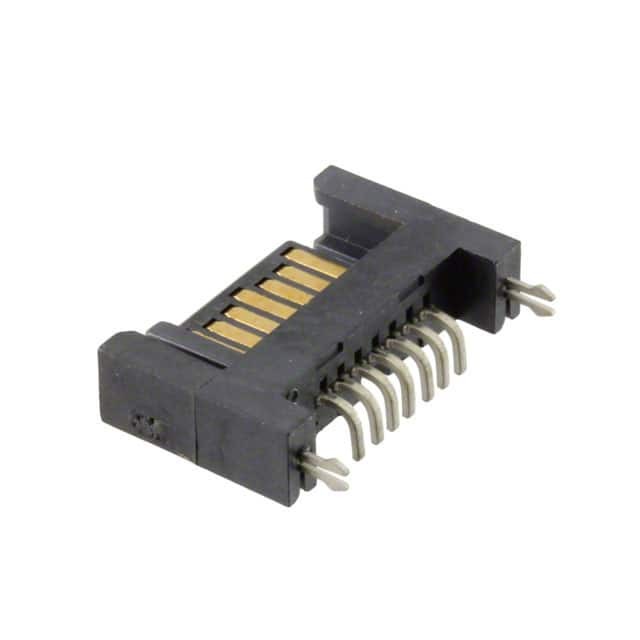

Same model may have multiple batches, images only for reference.
1734058-2
Same model may have multiple batches, images only for reference.

1734058-2

Part No 1734058-2
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description CONN SATA PLUG 7POS SLD SMD / 7 Position SATA Plug Connector Solder Surface Mount
Datasheet
1734058-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity
Package Tube
Product Status Obsolete
Connector Style Plug
Connector Type SATA
Number of Positions 7
Mounting Type Surface Mount
Termination Solder
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 1734058
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905499-1734058-2
Ultra Librarian 3D Model Ultra Librarian 1734058-2 CAD Model

Description

The TE Connectivity 905499-1734058-2 is a pluggable connector assembly with a SATA connector type.

  • Positions: 7
  • Board Lock: Yes
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Package: Tube
  • Connector Style: Plug
  • Standard Package Quantity: 8,000 pieces
  • Mounting: Surface Mount
  • ECCN: EAR99 compliant
  • Status: Obsolete
