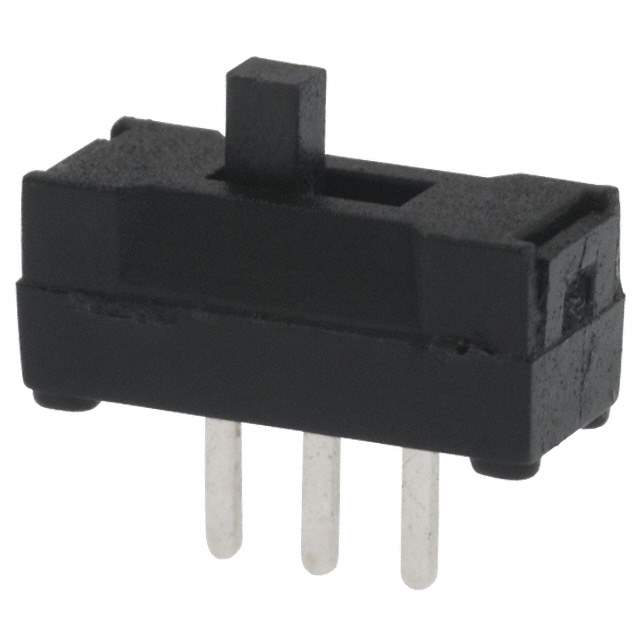

1825280-1 Real Image
Same model may have multiple batches, images only for reference.

1825280-1

Part No 1825280-1
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE SPDT 100MA 12V  /  Slide Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series SSJ
Package Bulk
Circuit SPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Operating Force 250gf
Base Product Number 1825280
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names 2266-1825280-1,450-1634,SSJ1204
Standard Package 800
Win Source Part Number 1188264-1825280-1
Ultra Librarian 3D Model Ultra Librarian 1825280-1 CAD Model

Description

The SSJ series slide switch from TE Connectivity is a SPDT circuit switch with a shorting (MBB) contact timing.

  • Circuit: SPDT
  • Contact Timing: Shorting (MBB)
  • Switch Function: On-On
  • Actuator Type: Standard
  • Actuator Length: 2.00mm
  • Switch Travel: 2.00mm
  • Operating Force: 250gf
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 10,000 cycles
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Actuator Material: Polyamide (PA66), Nylon 6/6
  • Voltage Rating (DC): 12 V
  • Current Rating: 100mA (DC)
  • Operating Temperature: -20°C ~ 70°C
  • Packaging: Bulk
  • Standard Package: 800
