Same model may have multiple batches, images only for reference.

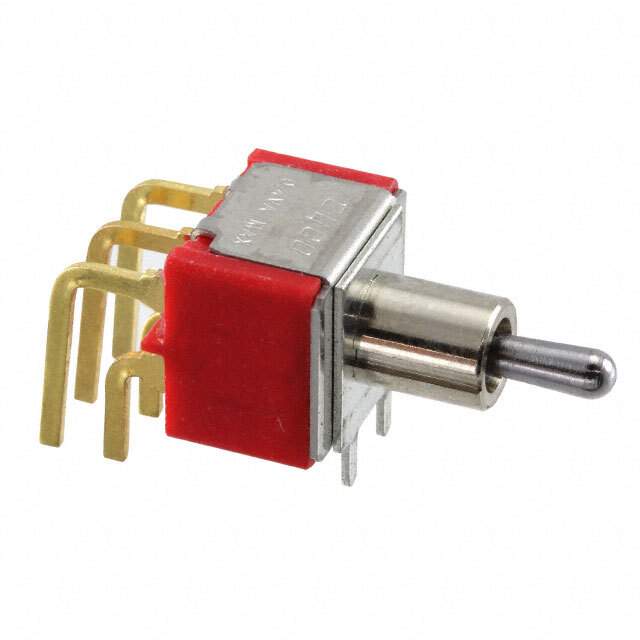

1825139-2 Real Image
Same model may have multiple batches, images only for reference.

1825139-2

Part No 1825139-2
Manufacturer TE Connectivity
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 0.4VA 20V  /  Toggle Switch DPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series Gemini A
Package Bulk
Mounting Type Through Hole, Right Angle
Circuit DPDT
Switch Function On-Off-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 6.86mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Nickel Plated
Electrical Life 6,000 Cycles
Base Product Number 1825139
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-1825139-2,A203MD9AB04,1825139-2-ND,450-2385,A203MD9AB04-ND
Standard Package 100
Win Source Part Number 1191624-1825139-2
Ultra Librarian 3D Model Ultra Librarian 1825139-2 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches Gemini A DPDT toggle switch has a voltage rating of 20V AC/DC and a current rating of 0.4VA (AC/DC).

  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA (AC/DC)
  • Switch Function: On-Off-On
  • Actuator Type: Standard Round
  • Actuator Length: 6.86mm
  • Actuator Material: Brass, Nickel Plated
  • Mounting Type: Through Hole, Right Angle
  • Termination Style: PC Pin
  • Electrical Life: 6,000 Cycles
  • Operating Temperature: -30°C to 85°C
  • REACH Status: REACH Affected
